Specifications:

Dry Axle Weight (approx. Lbs.): 4589
Dry Hitch Weight (approx. Lbs.): 665
Net Carrying Capacity: 2246
Gross Dry Weight – Lbs.: 5254
Gross Vehicle Weight (GVWR) – Lbs.: 7500
Exterior Length (approx. w / hitch): 23’10”
Exterior Height (approx.): 11’2″
Exterior Width (approx.): 8’6″
Tire Size: ST205/75R15
Load Range: D
Fresh Water Capacity (w/water heater, approx. gal.): 46
Gray Water Tank (approx. gallons): 42
Black Water Tank (approx. gallons): 35
LPG Capacity (approx. lbs): 60
Sleeping Capacity: 4
CSA – Canadian Dealers Only: YES
Auto Ignition Furnace (1,000 BTUs): 25

STANDARD FEATURES

Northwood Built, Independently Certified, Off-Road Chassis
Fully Welded, Thick-Wall Aluminum Frame Construction
One-Piece, Corona Treated, Continuous Fiberglass
Hot, Polyurethane Laminated, Multi-Layered Substrate Walls
High Density Block Foam Insulation
Wide-Body Floorplan
E-Z Lube Axles w/Nev-R Adjust Forward, Self Adjusting Brakes
15″ Aluminum Wheels / Tires & White Mod Spare
Shocks On All Four Wheels
Stabilizer Jacks
All-Conditions/Four Seasons Insulation With R-18 Ceiling
R-15 Reflective Foil Insulation in Roof
Heated Holding Tanks / Cathedral Arched Ceiling
Aerodynamic One Piece Front Cap w/BackRoad Armor
2 Independently Switched LED Hitch Lights
Easy Access LP Cover / Diamond Plate Bumper Wrap
LED Interior & Exterior Lighting
Roof Rack & Ladder /TV Antenna with Wi-Fi Extender Ready
SLAM Door Latches on Pass Thru Storage Doors
12V Light in Storage Compartment
LPG Quick Connect & Black Water Flush System
Large Exterior Entry Grab Handle / Entry Door Friction Hinge
Exterior Shower / 2 Afox Logo Director’s Chairs
Semi-Automatic Winterization/By-Pass System
6 Gal DSI Gas/Elect Quick Recovery Water Heater
13.5m BTU Air Conditioner w/Condensation-Resistant Ducting
Carefree Travel’R 12V LED Awning w/Adjustable Pitch HW
20 Watt Solar Panel / Sidewall Solar Port
12-Volt Power Tongue Jack
Outside Speakers/Battery Disconnect
Tinted Windows
Satellite Ready / Solar Ready

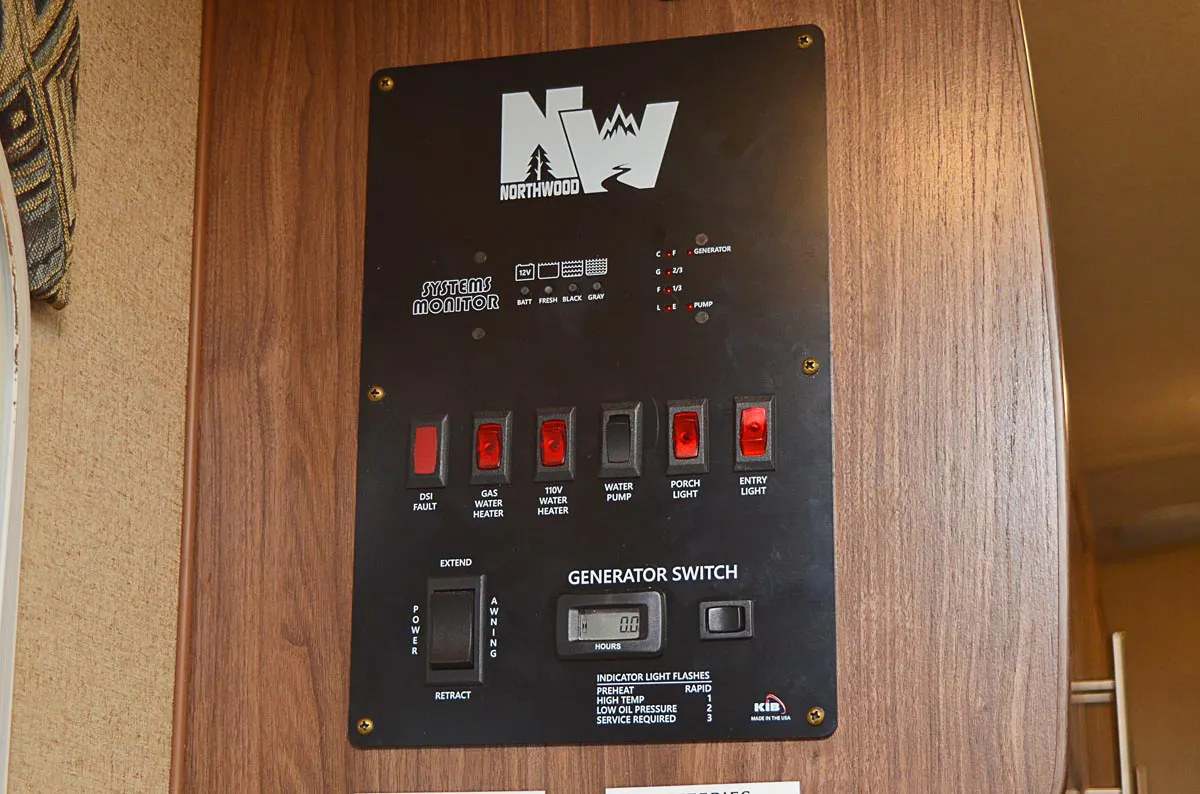

Interior Command Center
Roller Bearing Drawer Glides
Fabric Night Shade Window Treatments

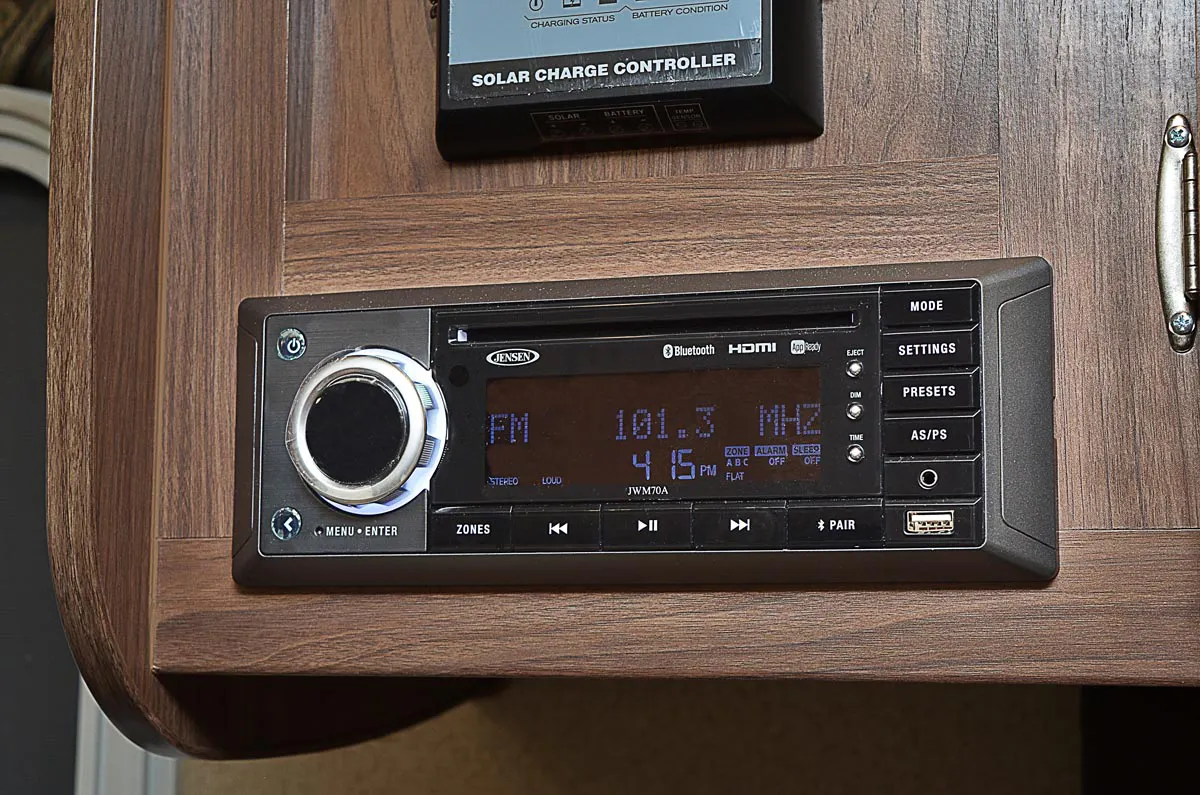

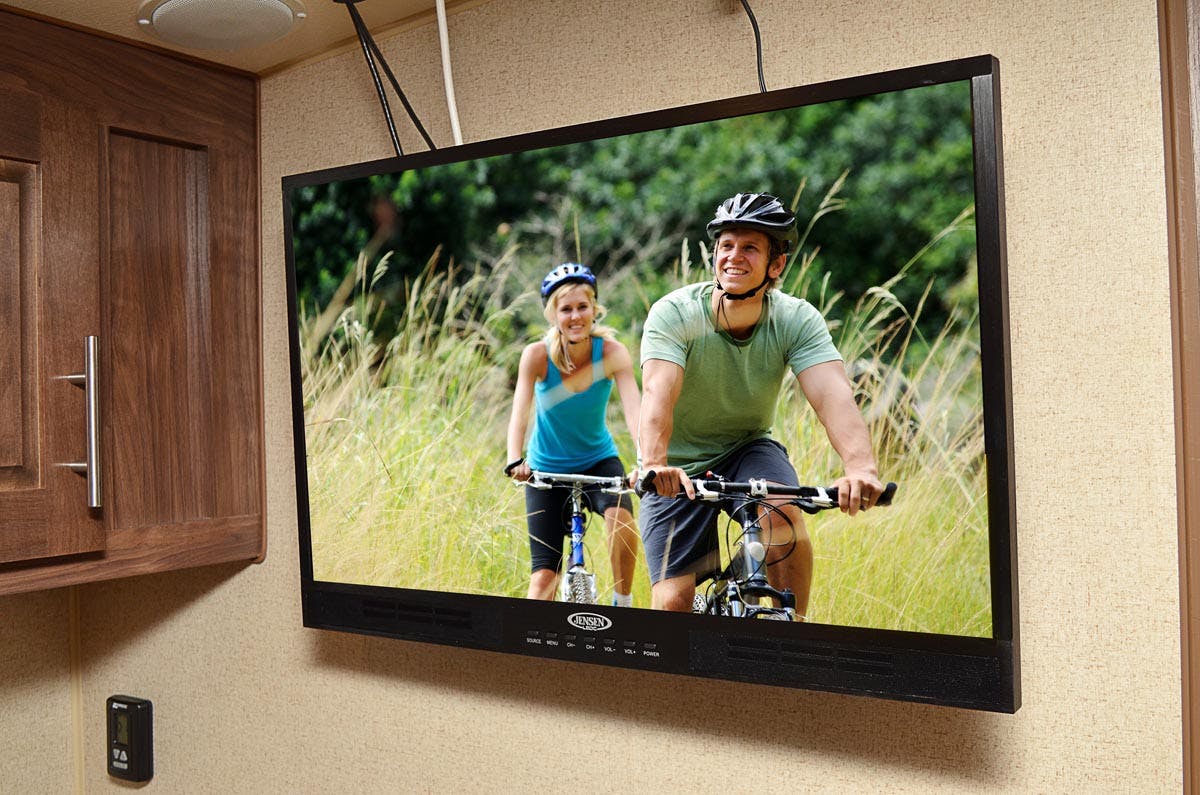

19″ 12v LED TV & AM/FM/CD/DVD Player w/Bluetooth
Smoke, LPG & CO Leak Detectors

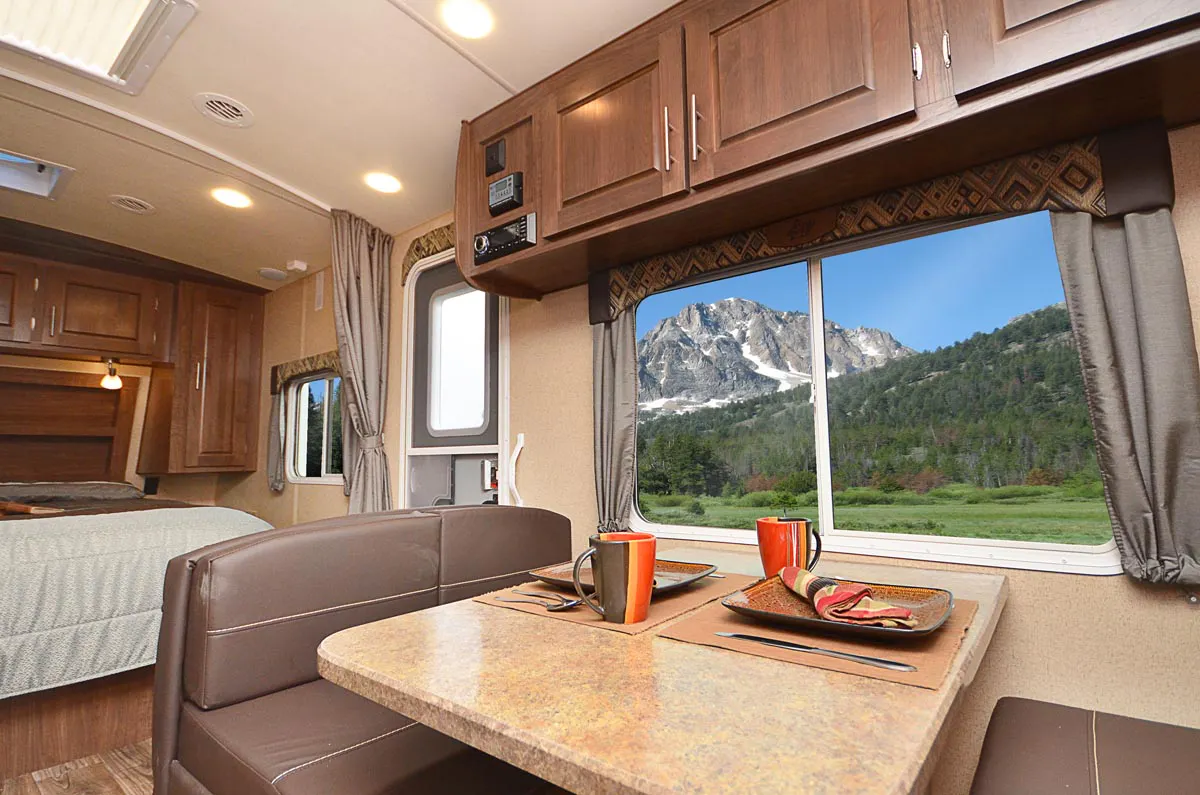

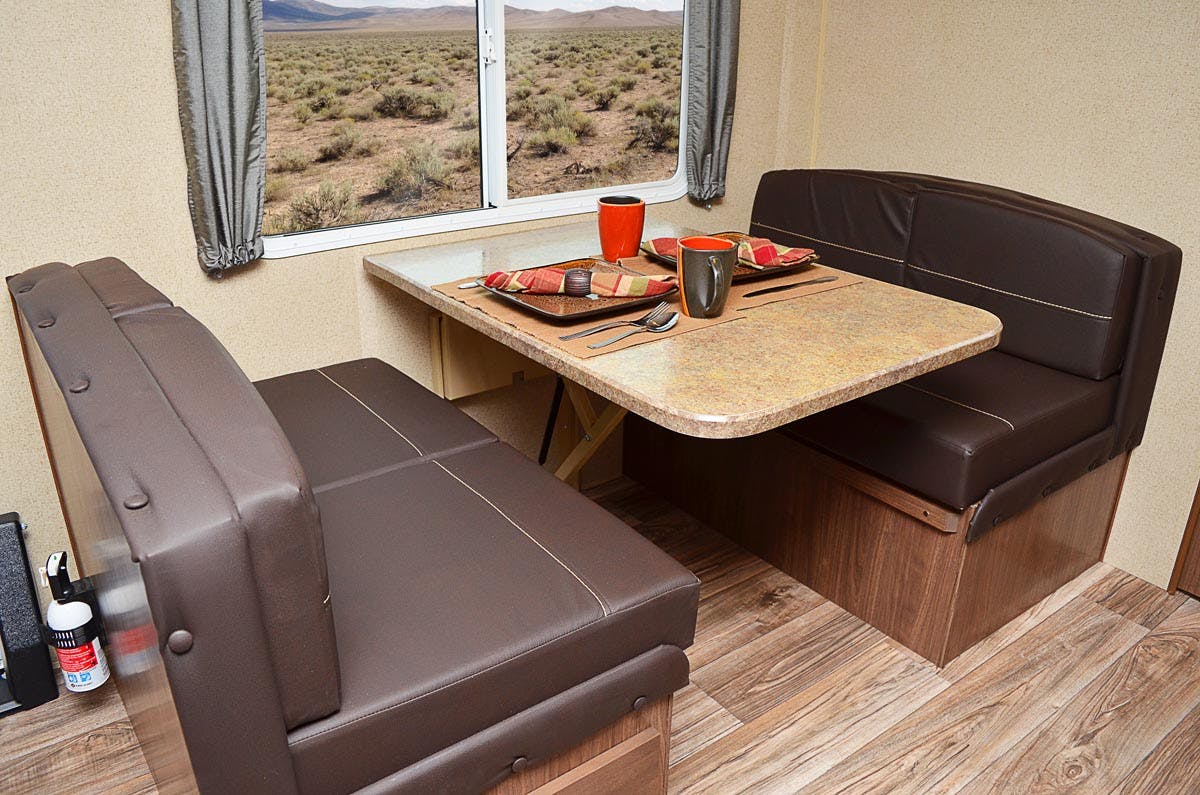

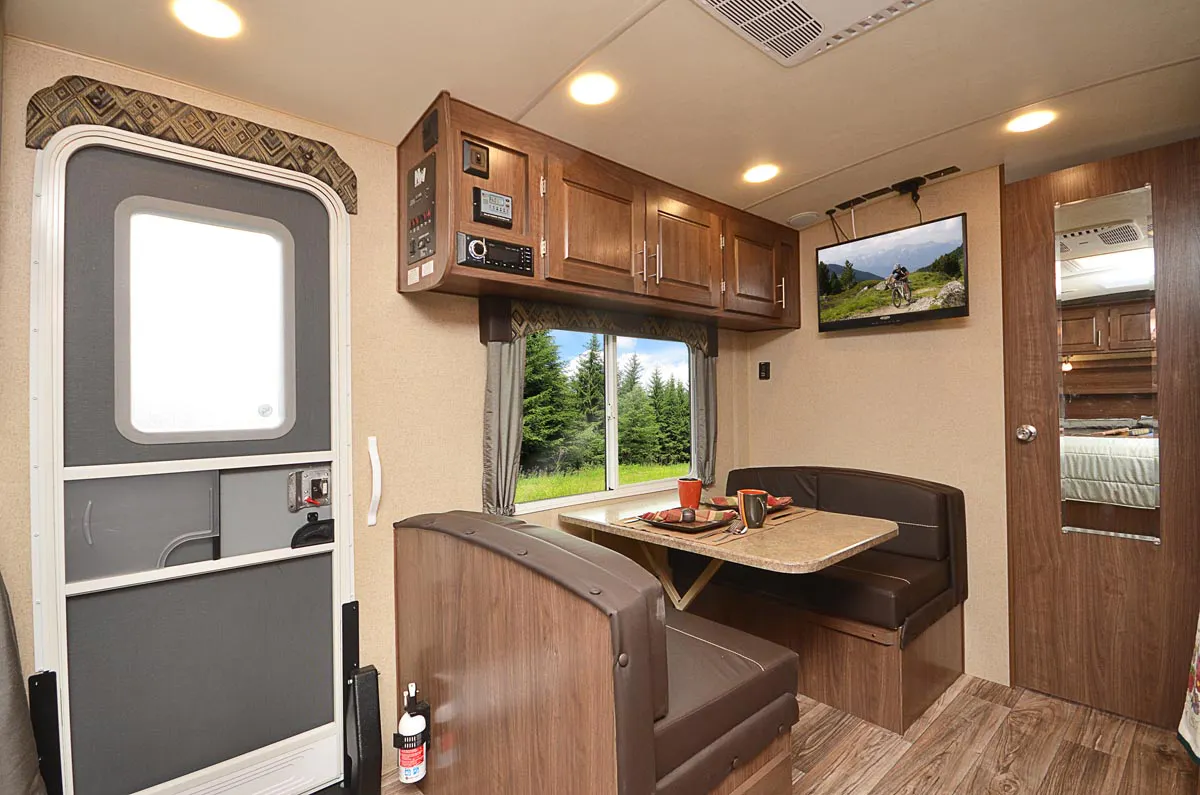

Booth Dinette

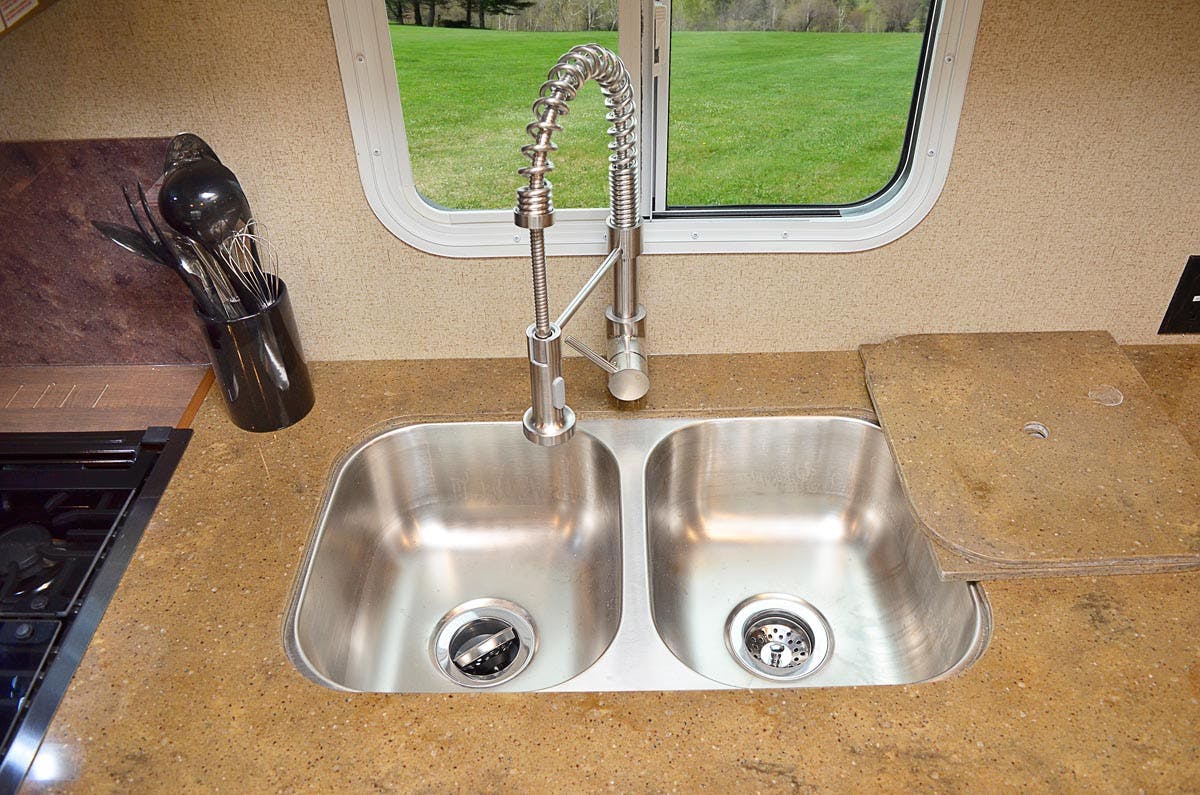

Solid Surface Kitchen Countertops

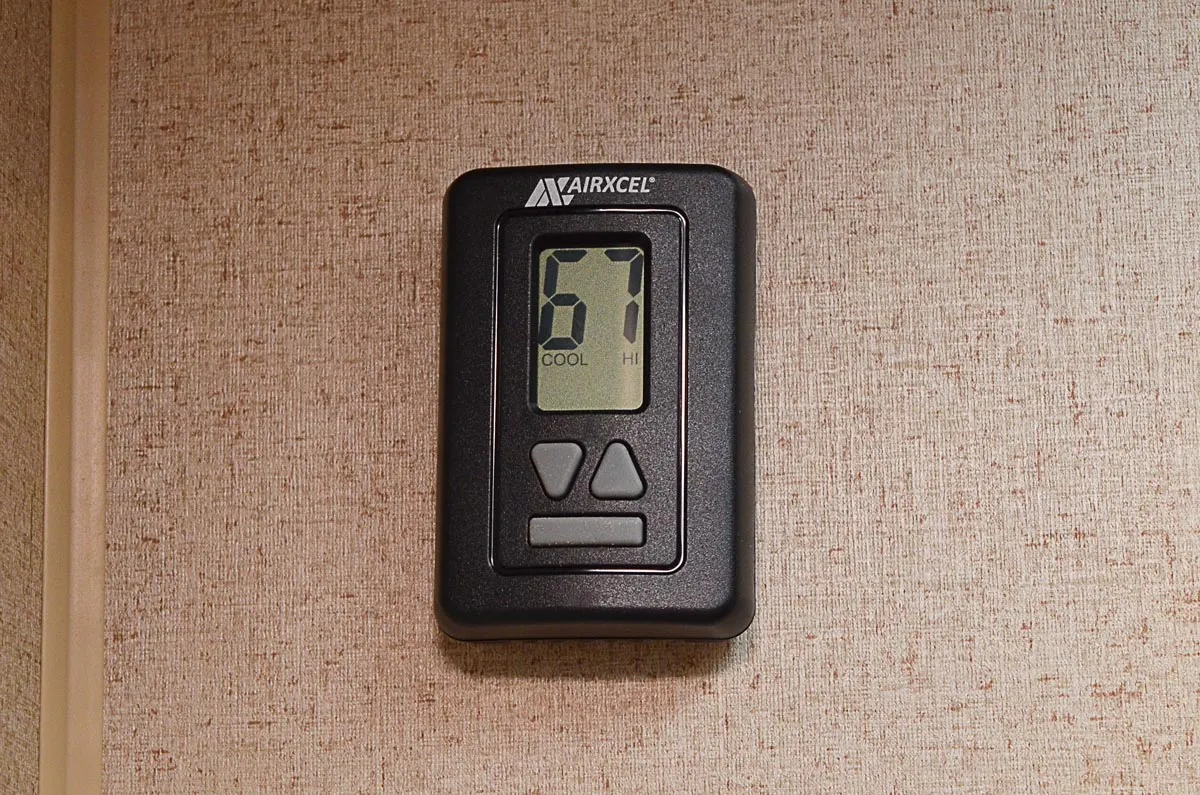

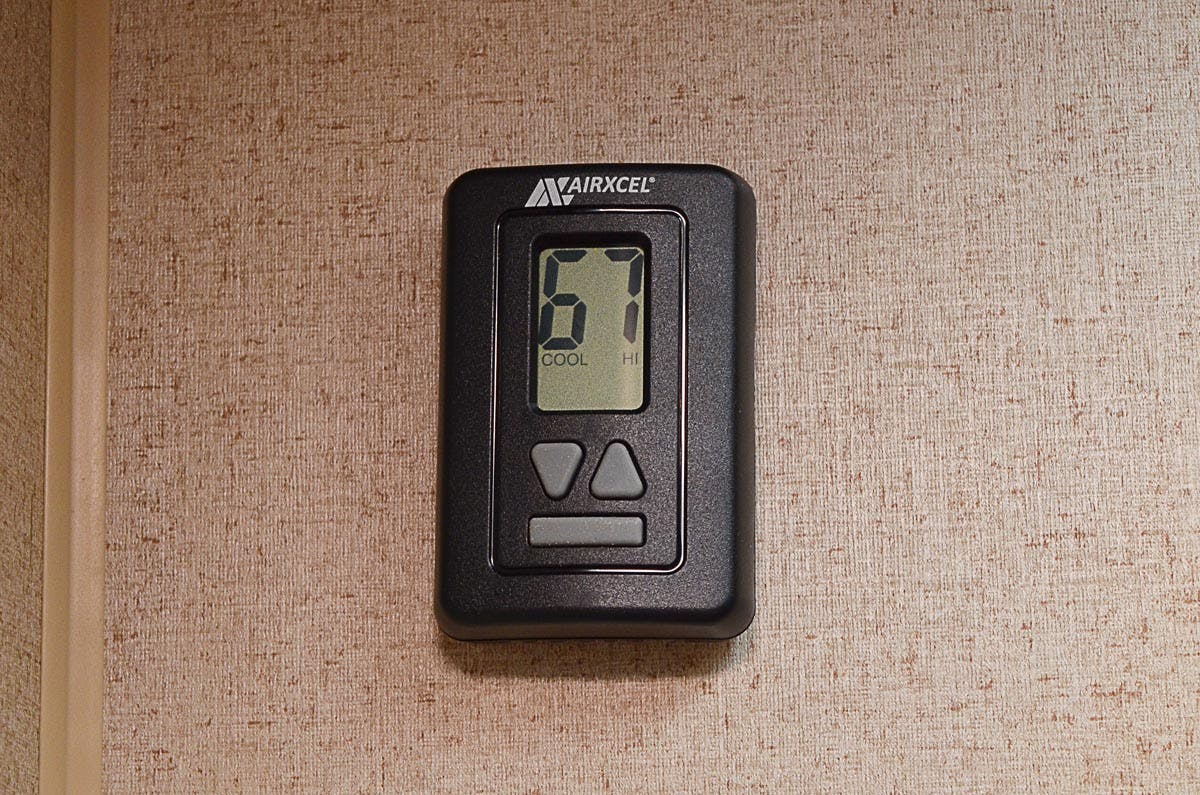

Charge Wizard / Digital Thermostat

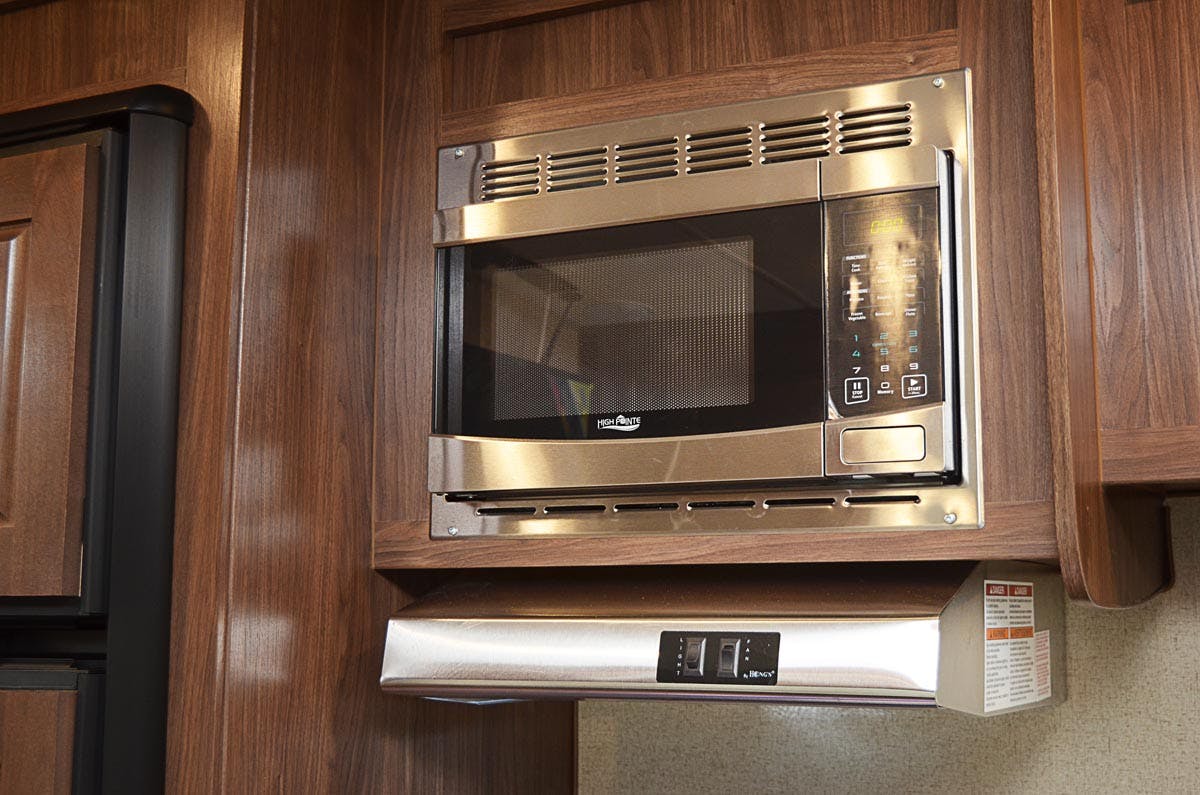

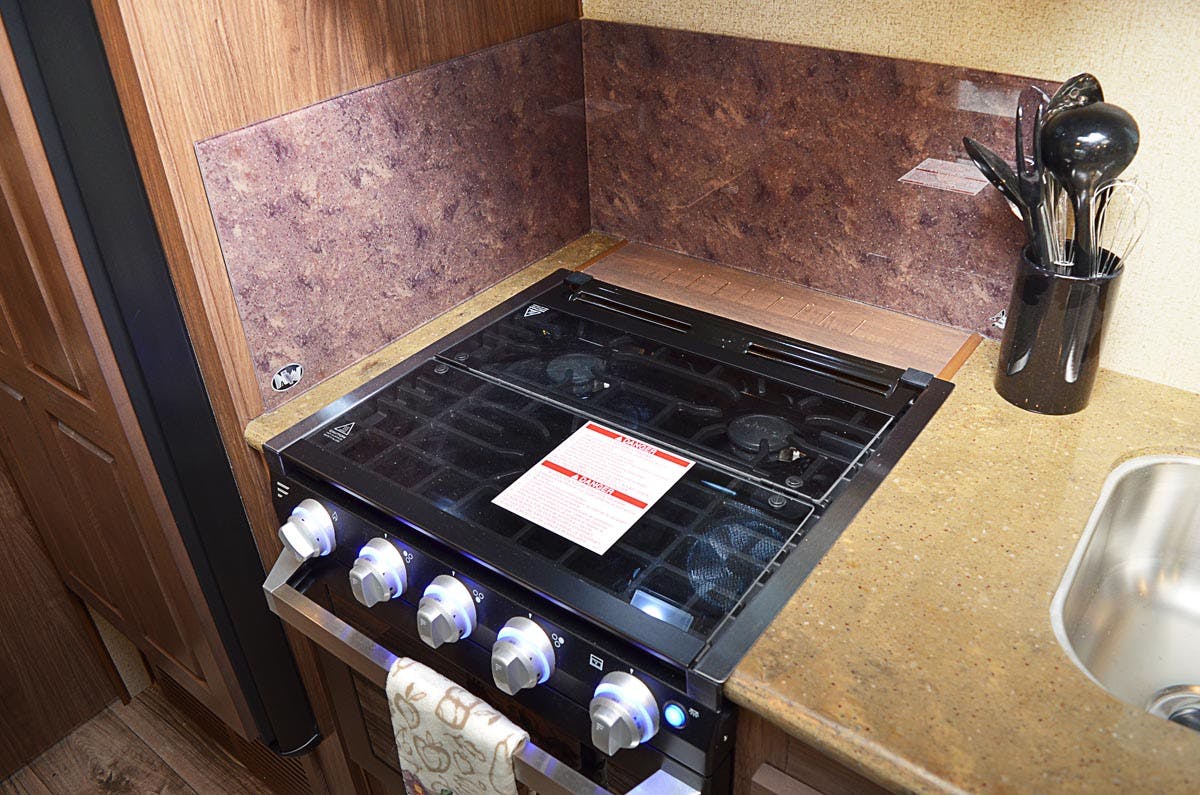

Residential, Built-In Microwave / Range Cover
Large Fridge (10 Cu Ft) w/ Multiple Raised Panels
Kitchen Skylight w/ Shade
Fan Vent (Bedroom)

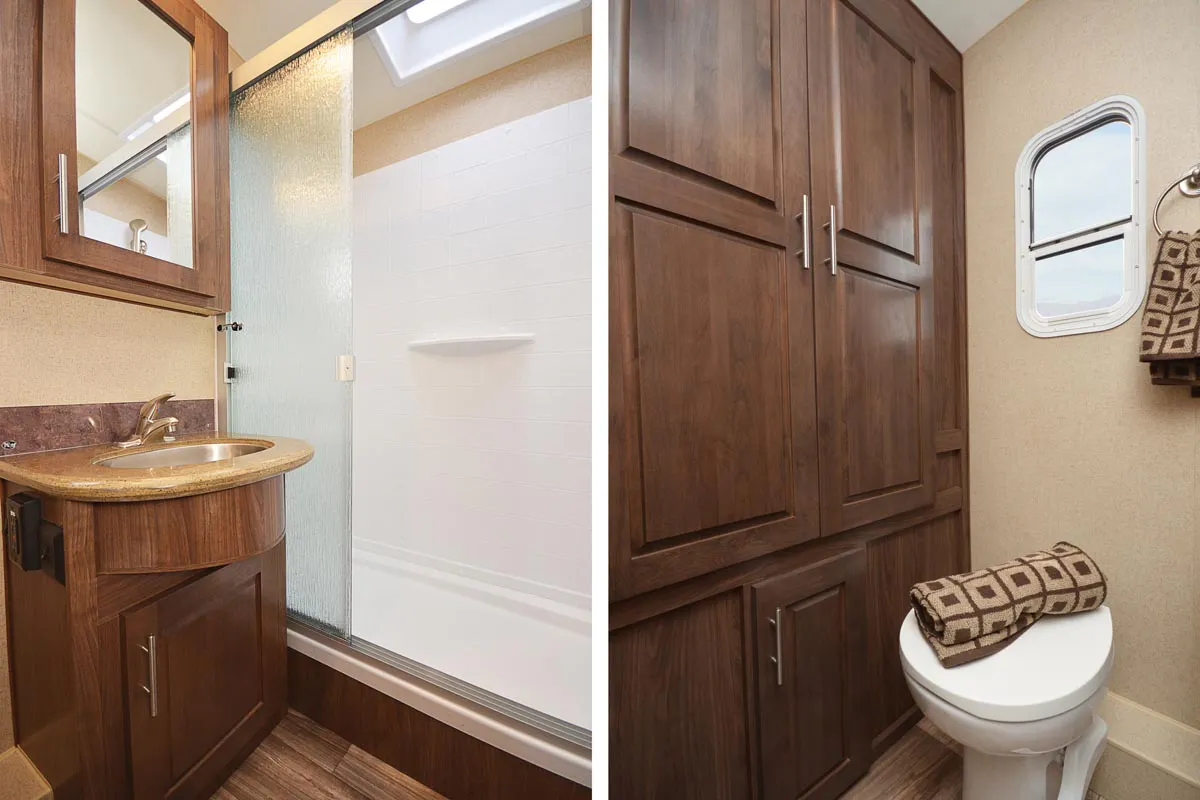

Porcelain, Foot-Pedal Toilet / Bath Skylight

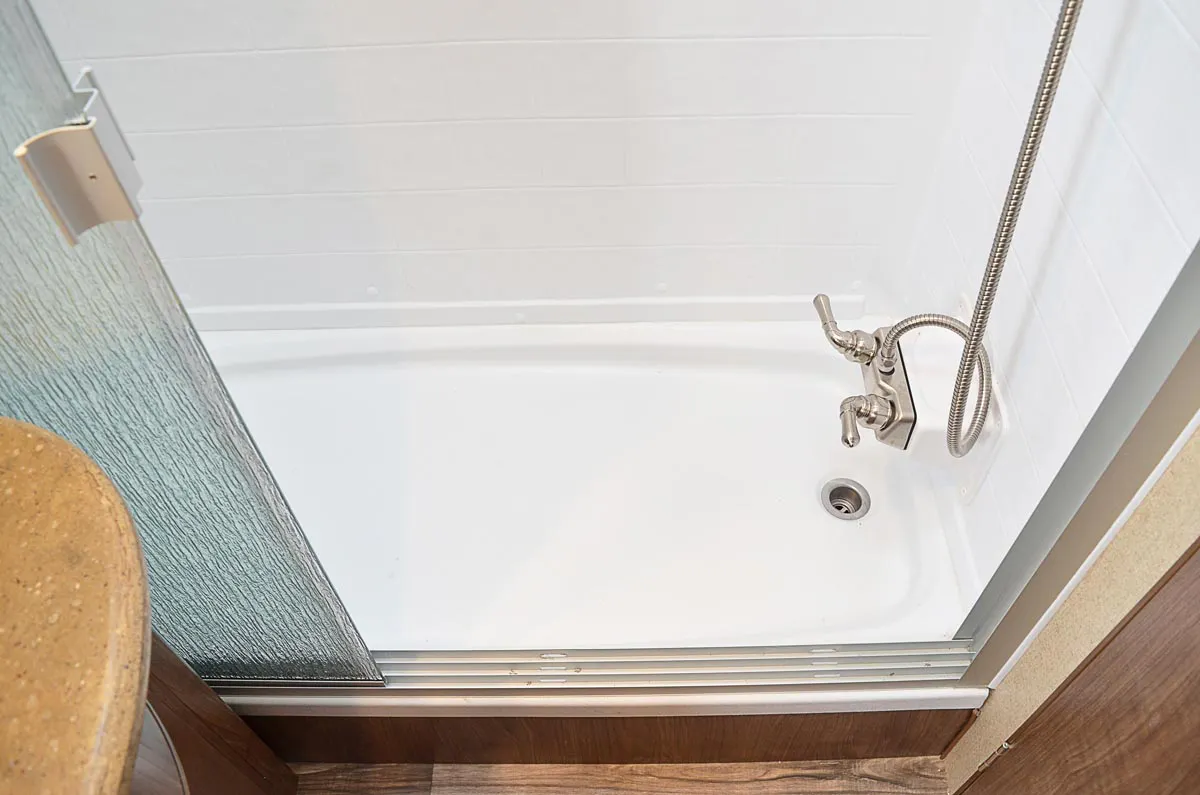

Glass Shower Enclosure / Shower Pan

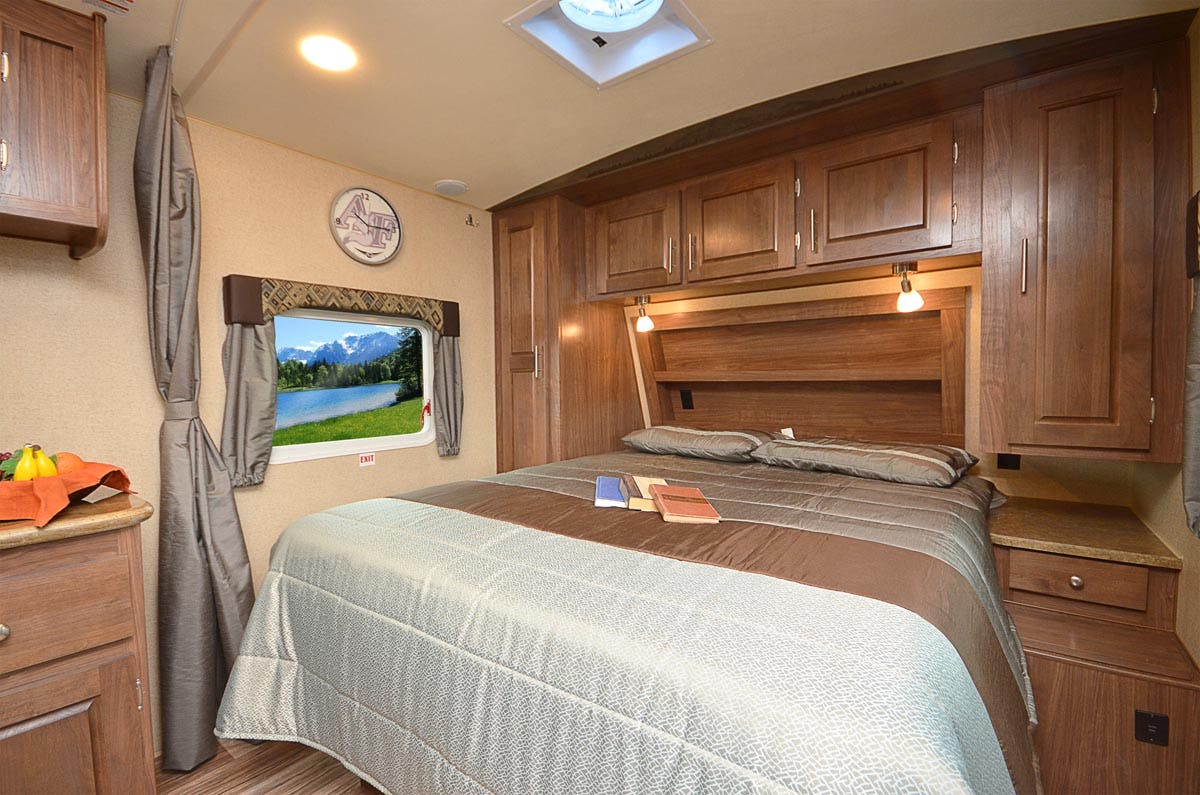

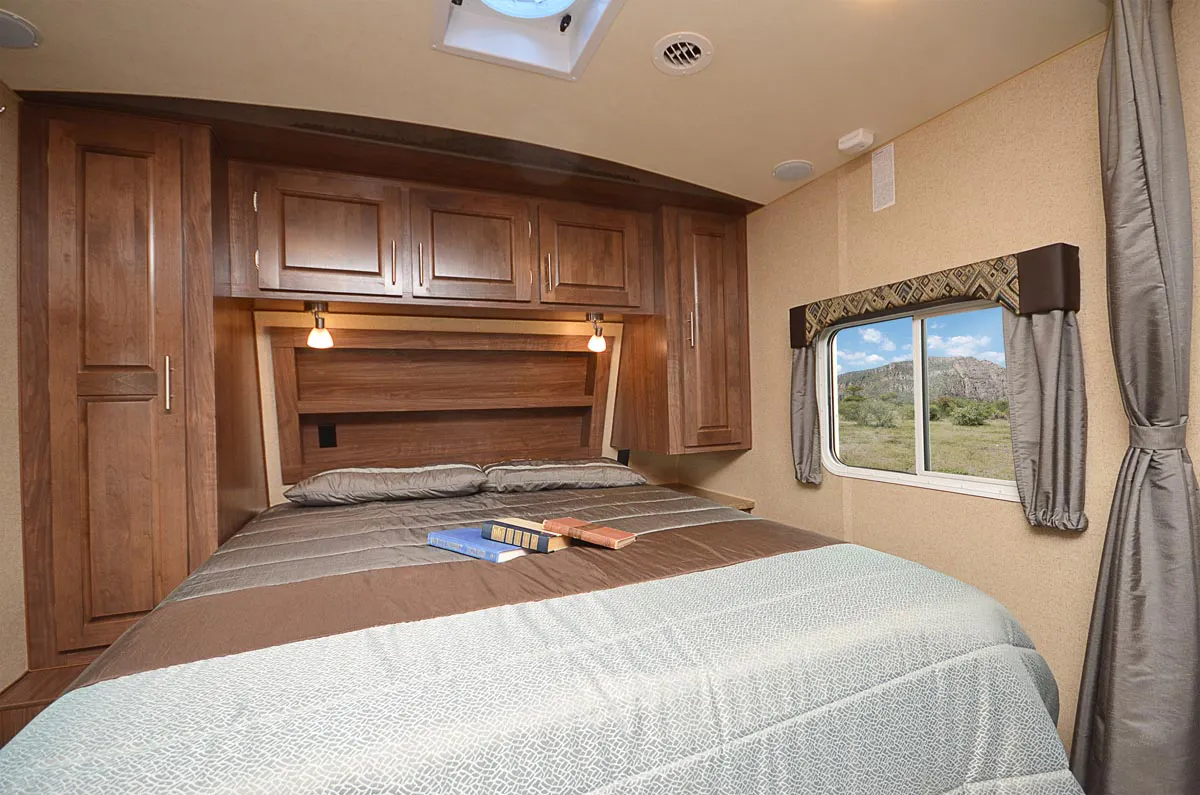

NW TruRest Queen Mattress w/ Bedspread
Built-In Laundry Chute
USB Charging Ports on Both Sides of Bed

OPTIONS

Battery Box Kit
Alumaguard Main Awning
CSA (Canadian Dealers Only)
15K Low Pro Air Conditioner w/Ducting
15K Air Conditioner w/ Ducting
Fan Vent – Bathroom (Exhaust Only)
Fan Vent-Kitchen (cannot have w/AC)
Powered Scissor Jacks, Front and Rear
Thermal Pane Windows
MORryde Step Above Entry Step TT
Holding Tank Heat Pads (All Tanks)
Sit & Sleep Sofa Bed
Bedroom Carpet w/Pad
Generator Ready w/11K BTU AC(Del 13.5 AC)
2.5 Onan LP Generator
60 Watt Solar Panel

100 Watt Solar Panel
80 Watt Portable Solar Panel Kit
170 Watt Solar Panel
Winegard Carryout G2+ Sat Dish (DISH/DIRECT)
Upgrade to 28″ TV
Aussie Grill w/Stand
Rear View Camera
Wi-Fi Extender
