Specifications:

Dry Axle Weight (approx. Lbs.):10122
Dry Hitch Weight (approx. Lbs.):2778
Net Carrying Capacity:3100
Gross Dry Weight – Lbs.:12900
Gross Vehicle Weight (GVWR) – Lbs.:16000
Exterior Length (approx. w / hitch):36’2″
Exterior Height (approx.):13’7″
Exterior Width (approx.):8’6″
Tire Size:ST235/85R16
Load Range:G
Fresh Water Capacity (w/water heater, approx. gal.):82
Gray Water Tank (approx. gallons):67
Black Water Tank (approx. gallons):65
LPG Capacity (approx. lbs):80
Sleeping Capacity:4
CSA – Canadian Dealers Only:YES
Auto Ignition Furnace (1,000 BTUs):35

Standard Features

Northwood Built, Independently Certified, Off-Road Chassis
Fully Welded, Thick-Wall Aluminum Frame Construction
One-Piece, Corona Treated, Continuous Fiberglass
Hot, Polyurethane Laminated, Multi-Layered Substrate Walls
High Density Block Foam Insulation
Wide-Body Floorplan/MORryde Step Above Entry Step
E-Z Lube Axles w/Nev-R Adjust Forward, Self Adjusting Brakes
Heavy Duty Greaseable Suspension
16″ Aluminum Wheels / Tires & White Mod Spare
Mor/ryde RPB Pin Box / Stabilizer Jacks
Bed Slide / Dinette Slide/ Flush Floor Super Slide
All-Conditions/Four Seasons Insulation With R-18 Ceiling
R-15 Reflective Foil Insulation in Roof / Slides
Heated Holding Tanks / Cathedral Arched Ceiling
Aerodynamic One Piece Front Cap
2 Independently Switched LED Hitch Lights
Fiberglass Rear Cap / LED Cap Accent Lights
LED Interior & Exterior Lighting
Roof Rack & Ladder / 20 Watt Solar Panel
Exterior Convenience Center / Sidewall Solar Port
SLAM Latch Luggage Doors / Magnetic Lugg Door Catches
Black Water Flush System
Large Exterior Entry Grab Handle / Entry Door Friction Hinge
Exterior Shower / 2 Afox Logo Director’s Chairs
Semi-Automatic Winterization/By-Pass System
10 Gal DSI Gas/Elect Quick Recovery Water Heater
15m BTU Air Conditioner w/Condensation-Resistant Ducting
Carefree Travel’R 12V LED Awning w/Adjustable Pitch HW
12v Power Land. Gear/TV Antenna with Wi-Fi Extender Ready
Outside Speakers/Battery Disconnect
Thermal Pane Windows / Exterior Security Lights
Generator Ready / Satellite Ready / Solar Ready

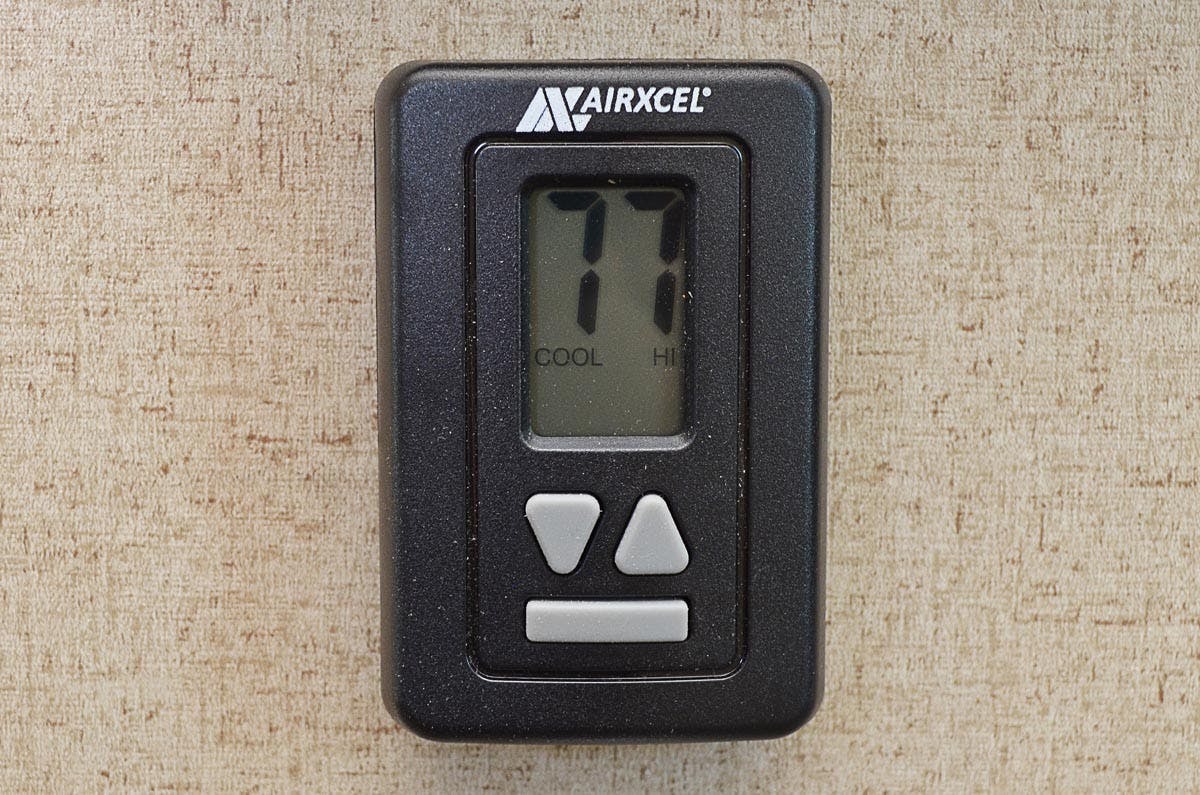

Electric Power Reel / Digital Thermostat

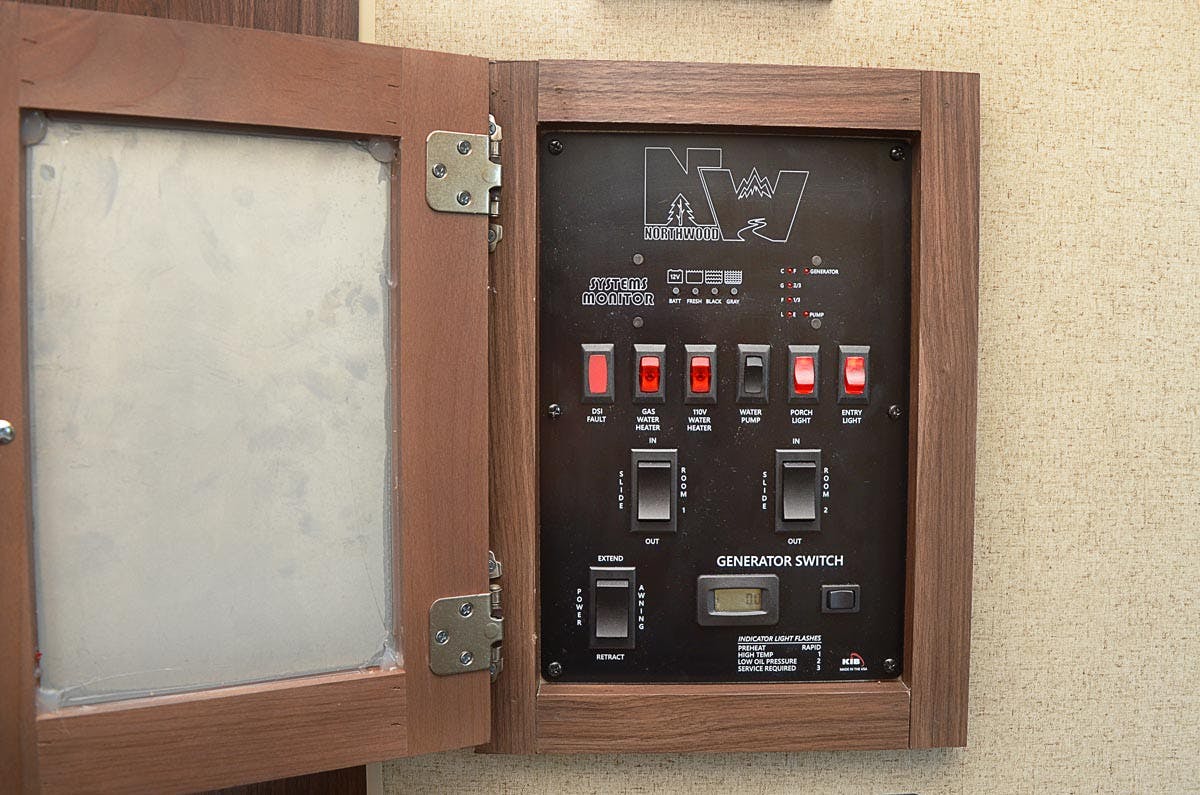

Interior Command Center / Afox Signature Throw Blanket
Livingroom & Bedroom Carpet w/ Pad
Roller Bearing Drawer Glides
Fabric Night Shade Window Treatments

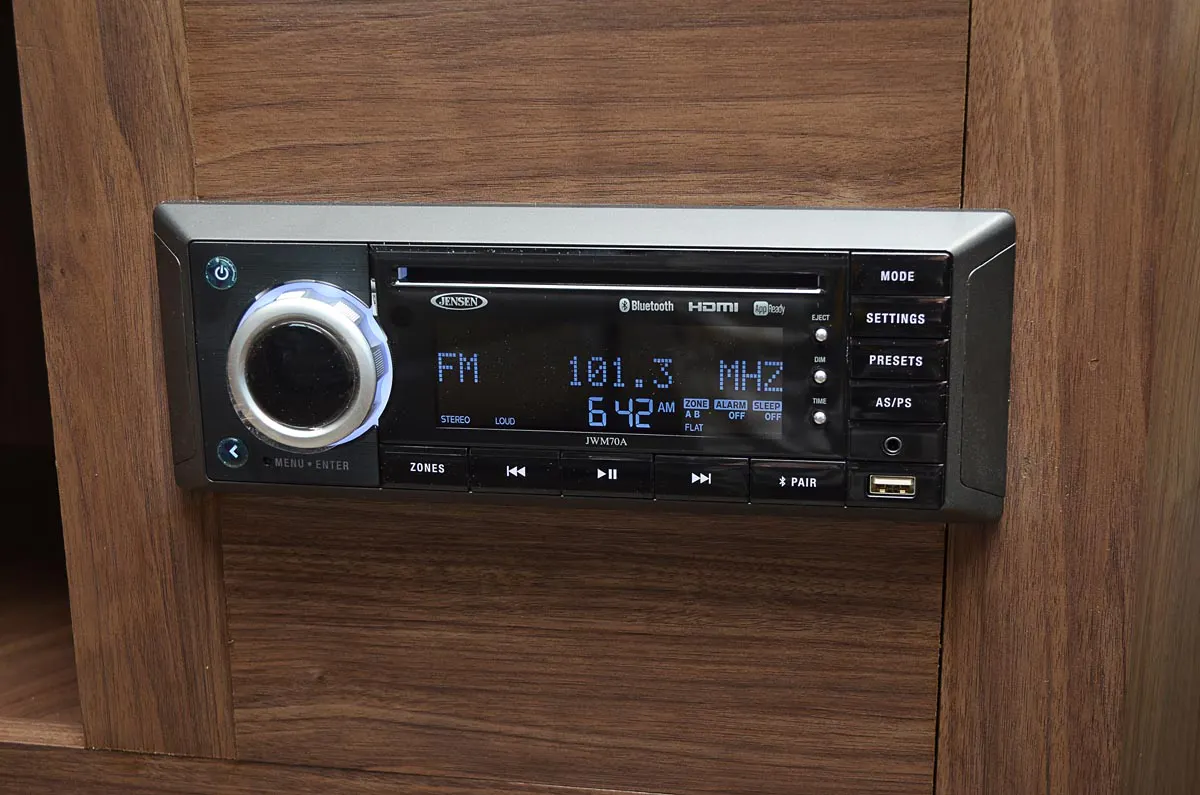

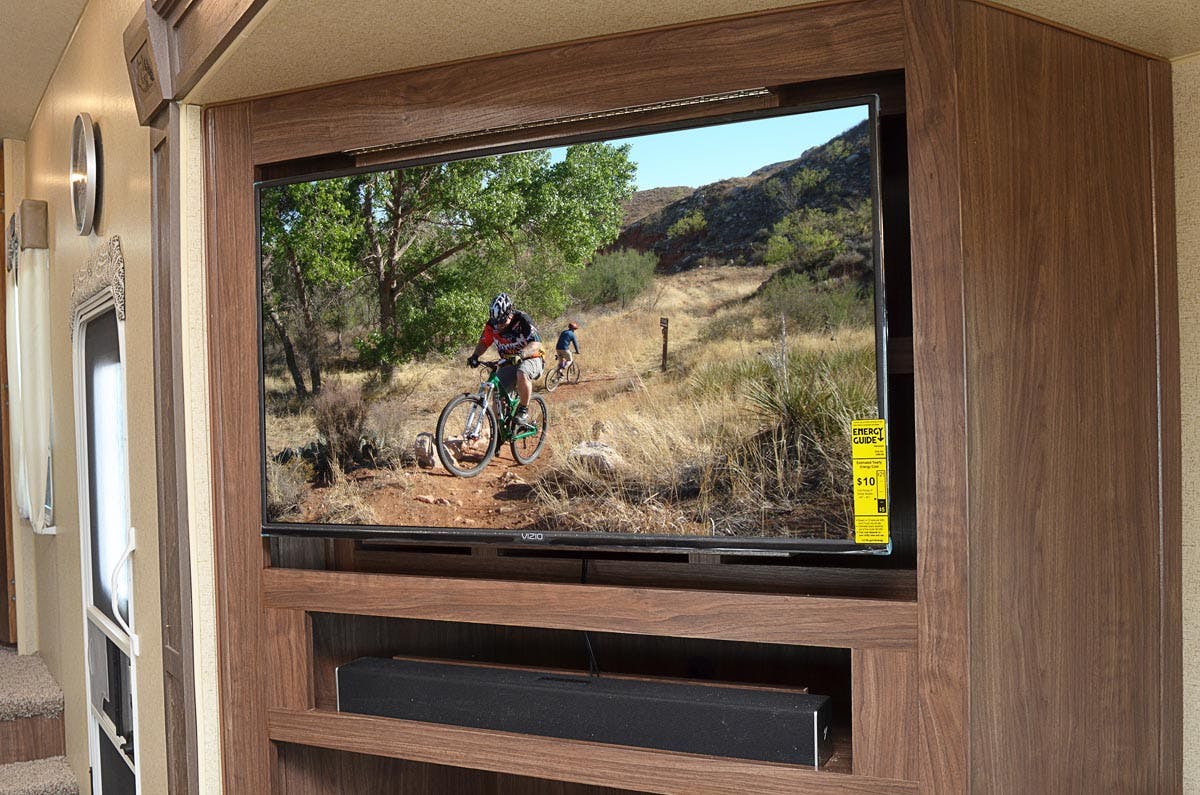

40″ 110 LED Smart TV & AM/FM/CD/DVD Player w/Bluetooth
Smoke, LPG & CO Leak Detectors / Charge Wizard

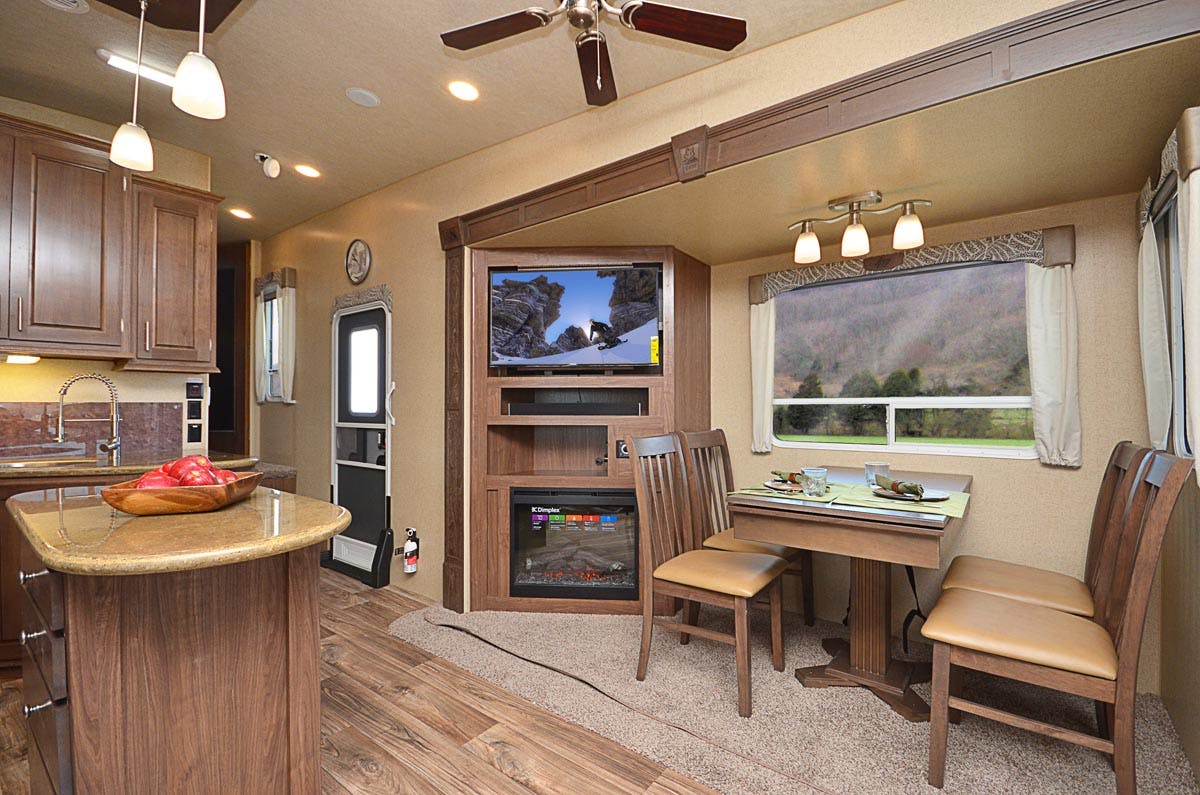

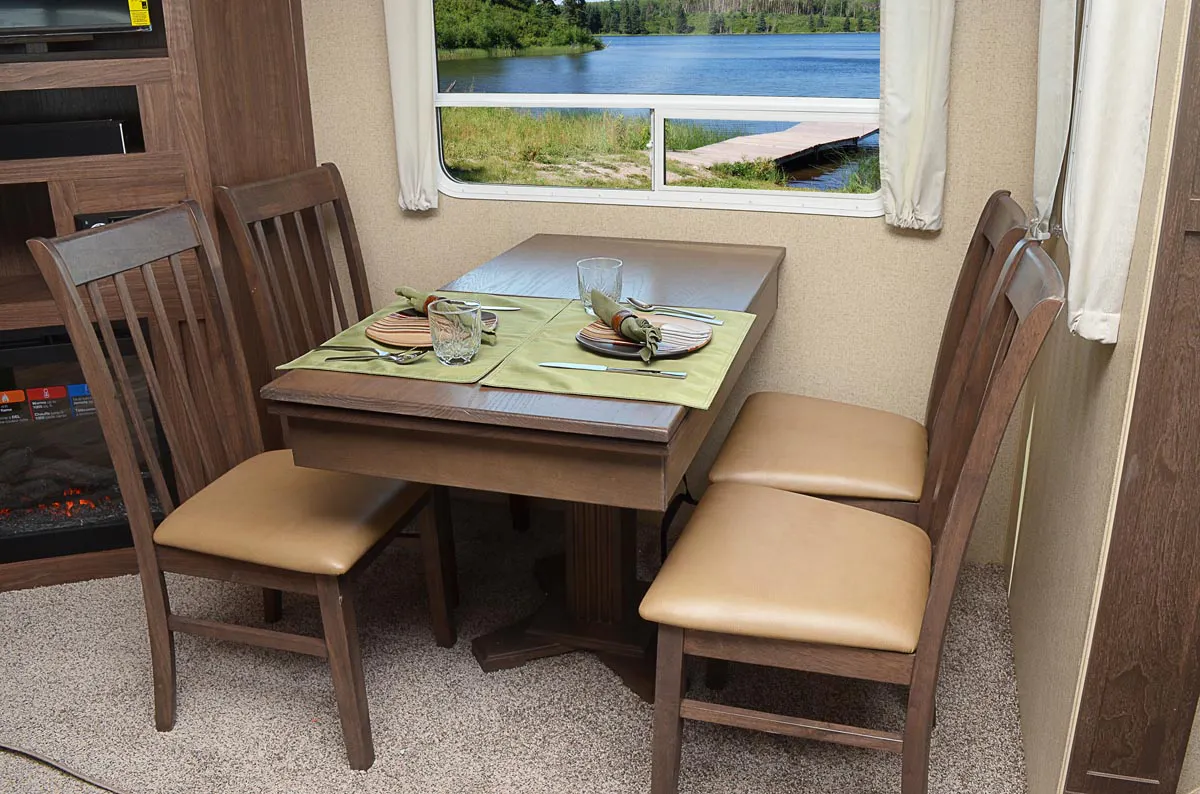

Free-Standing Table With 4 Chairs

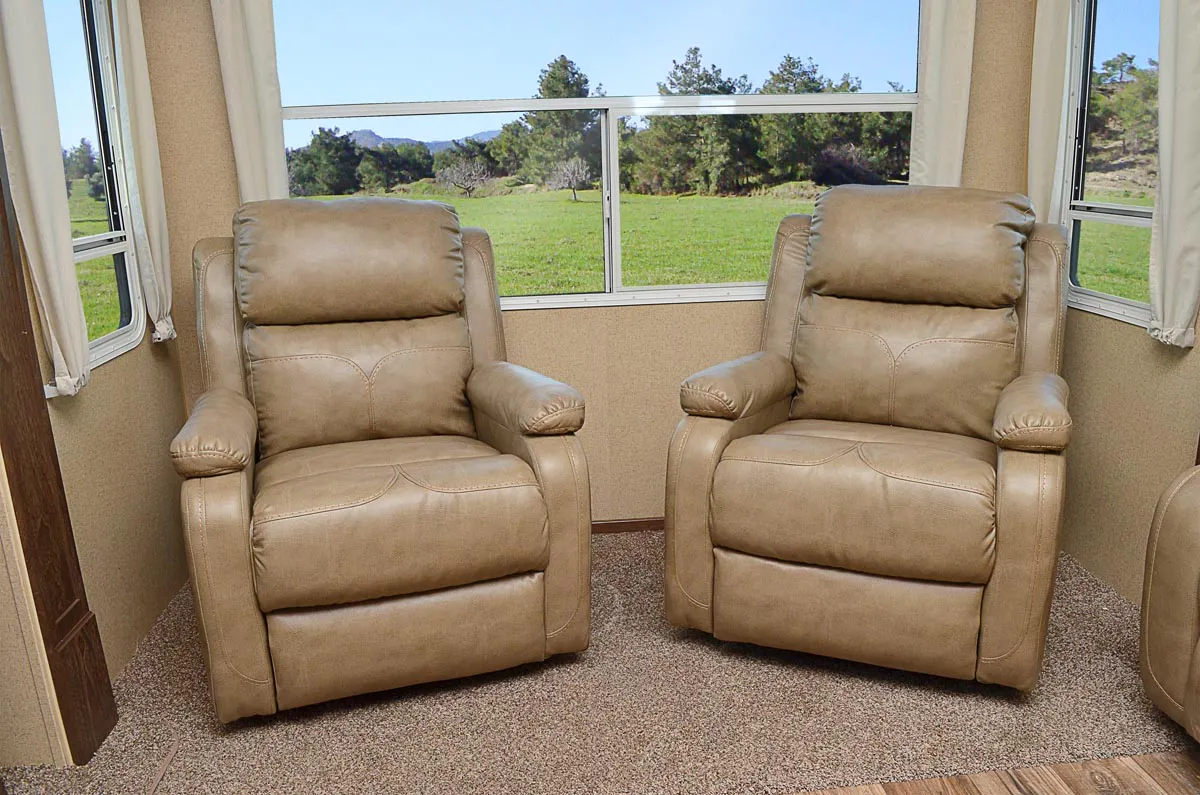

2 Cross-Stitch Swivel Rocker-Recliners
Tri-Fold Sofa With Decorative Throw Pillows

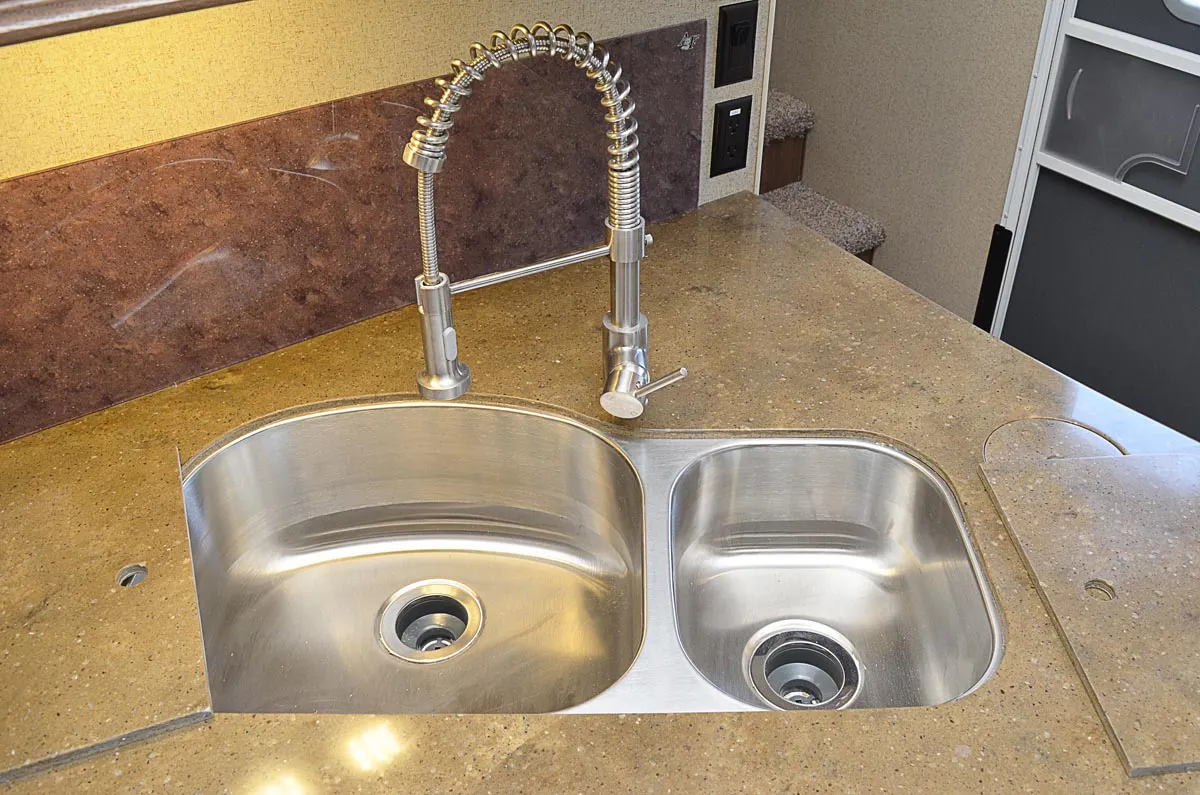

Solid Surface Kitchen Countertops / Range Cover

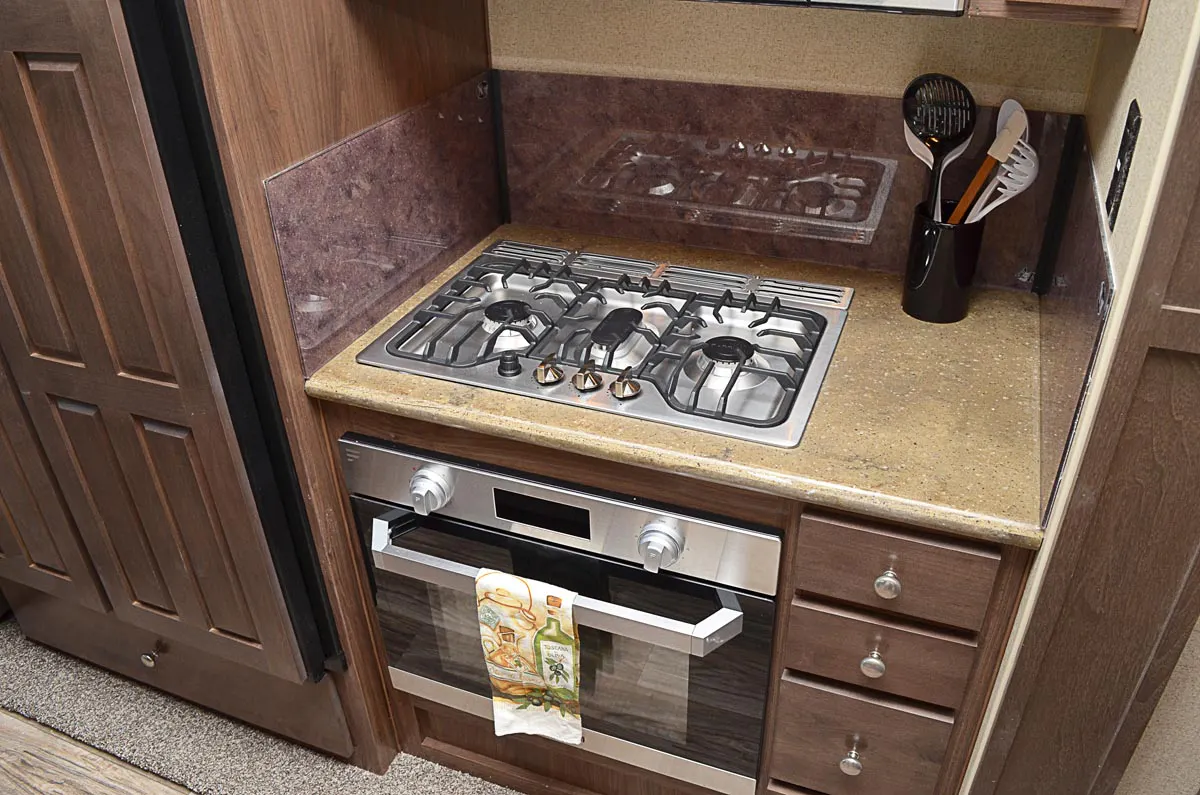

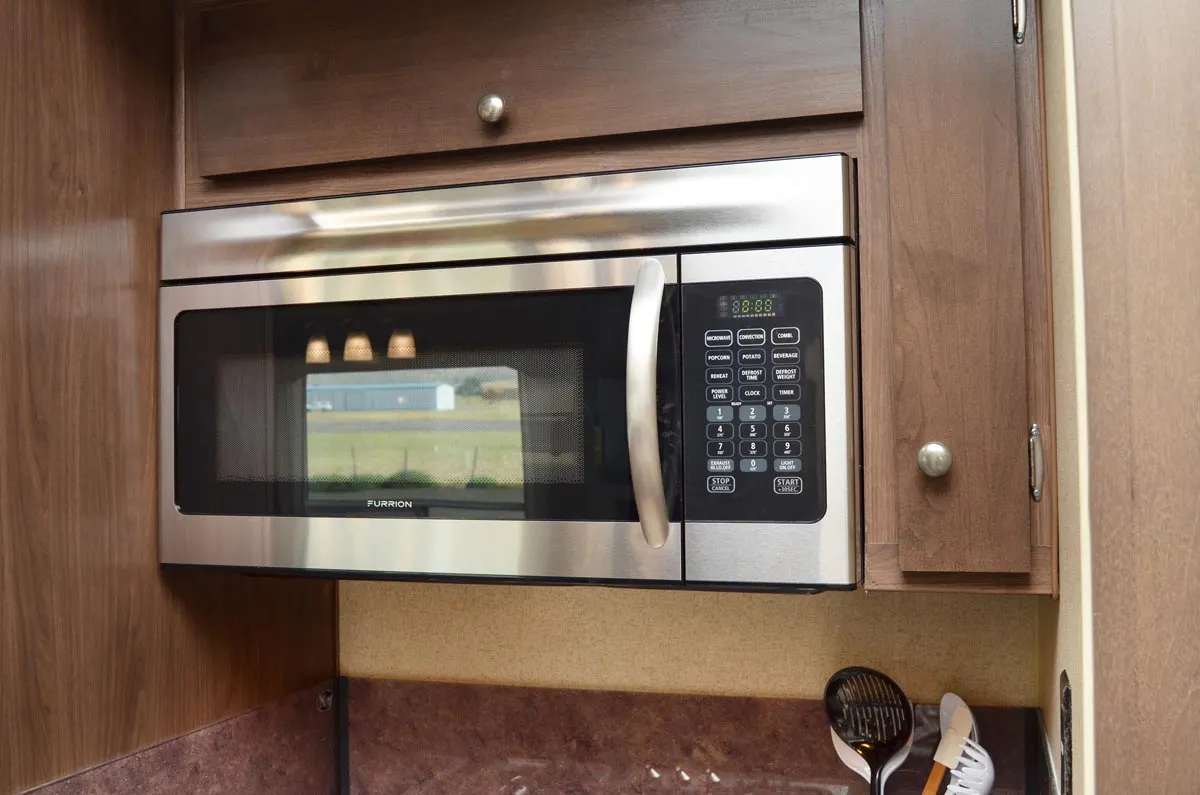

1.5 Cu Ft Over-The-Range, Convection Micro w/Range Hood
Extra Large Fridge (10 Cu Ft) w/ Multiple Raised Panels
Antique-Finish Kitchen Cabinetry / Lighted Toe Kick

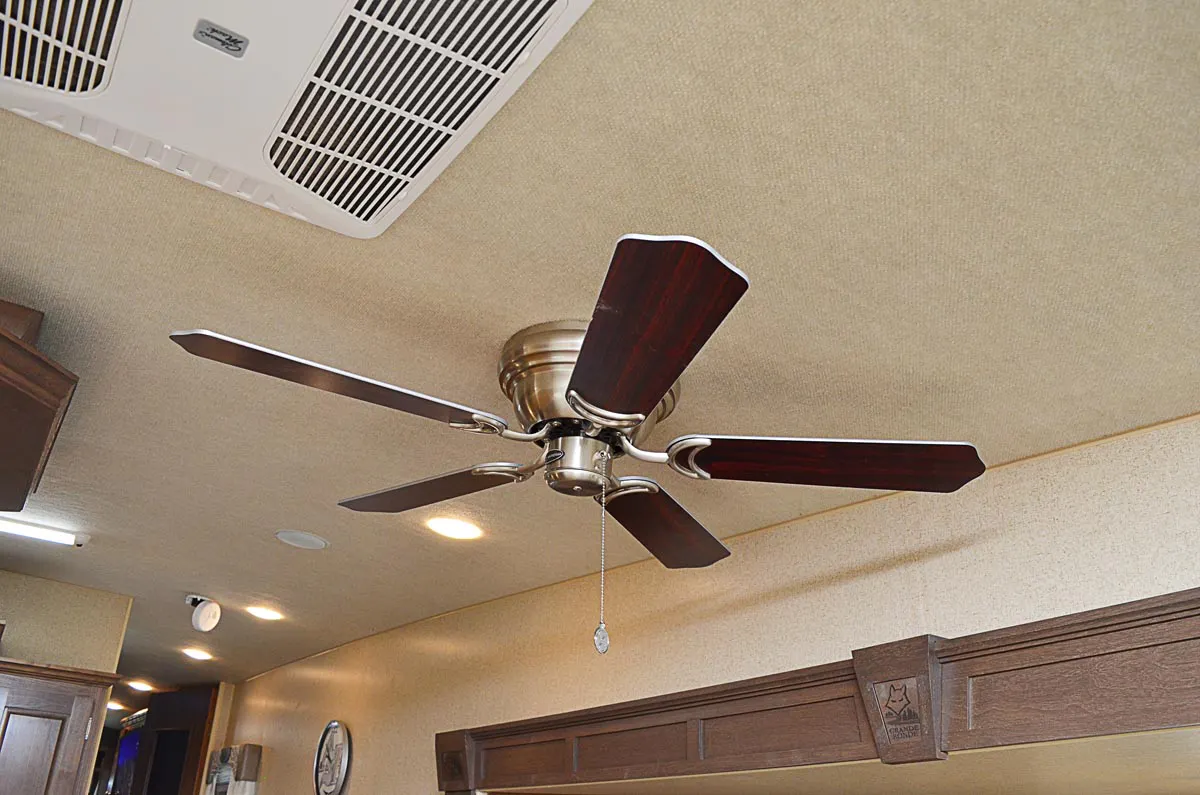

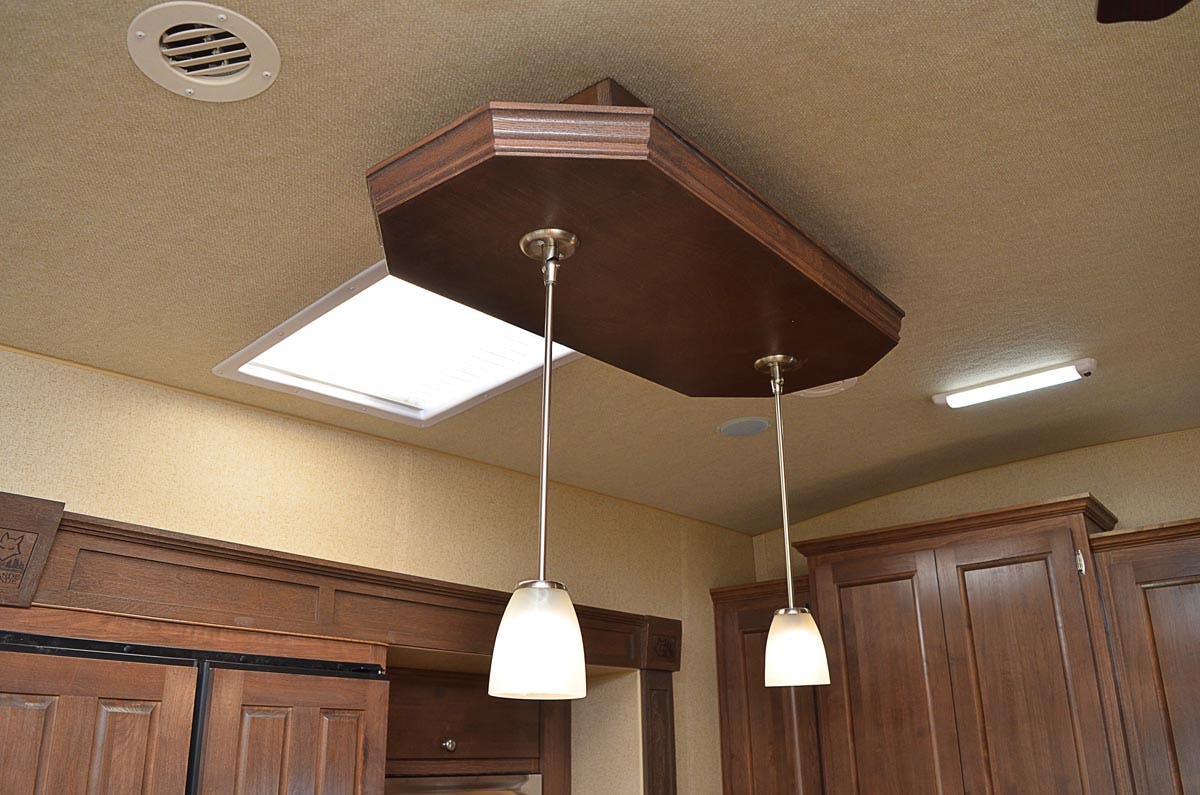

Dayliter Kitchen Skylight w/ Shade / Ceiling Fan
Fan Vent w/Remote/Tstat/Rain Sensor (Kitchen)

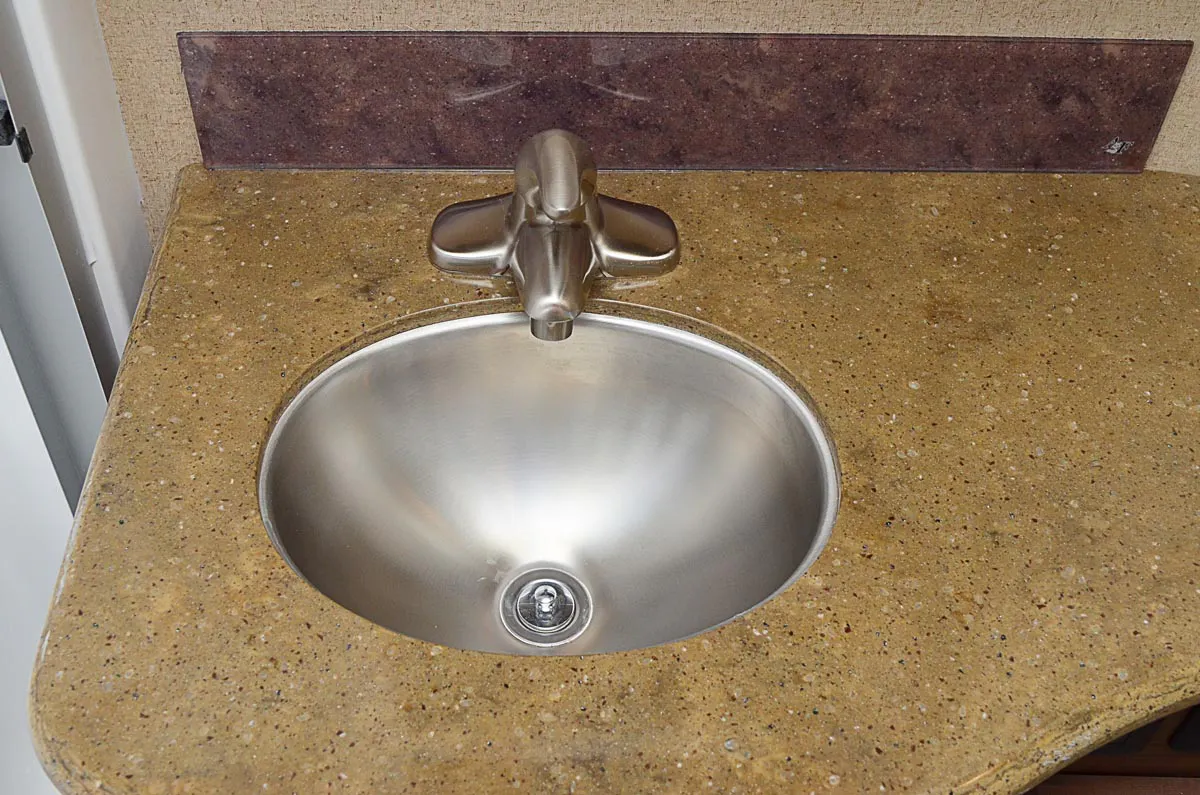

Solid Surface Bathroom Countertops w/SS Sink
Fan Vent – Bedroom / Exhaust Only Fan Vent – Bathroom
Porcelain, Foot-Pedal Toilet / Bath Skylight

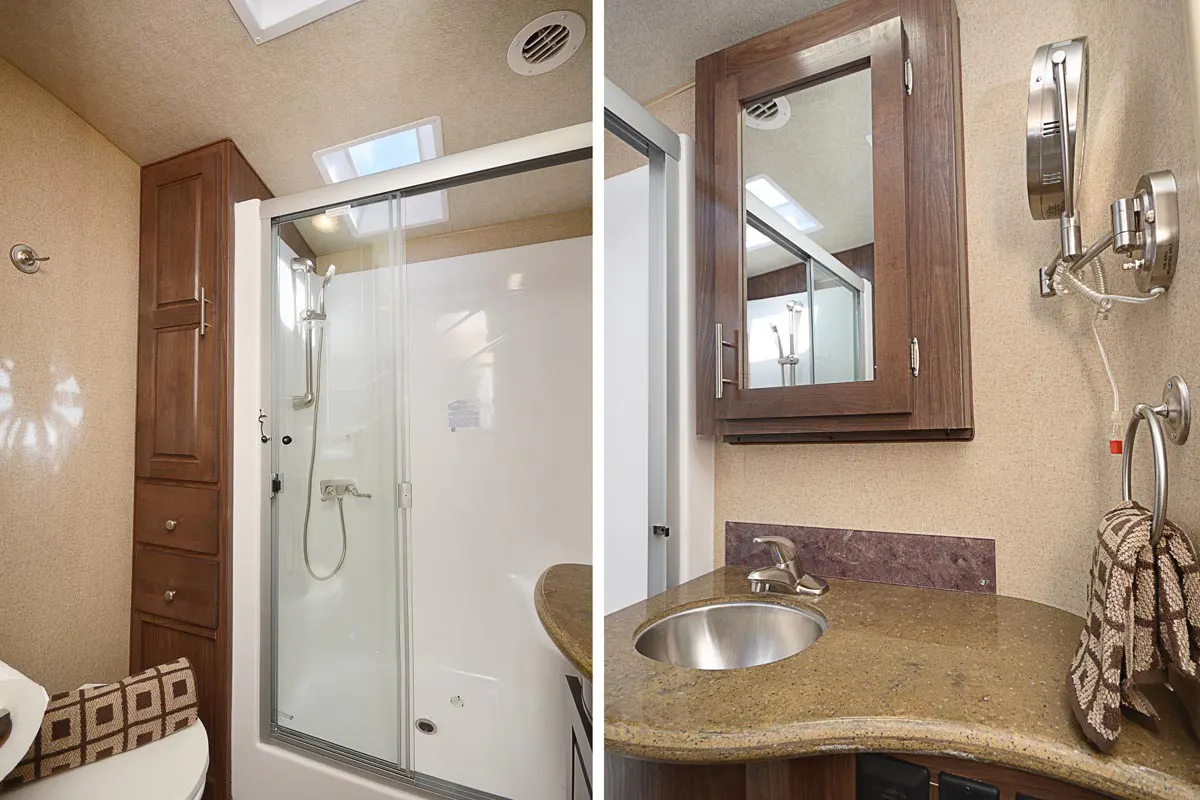

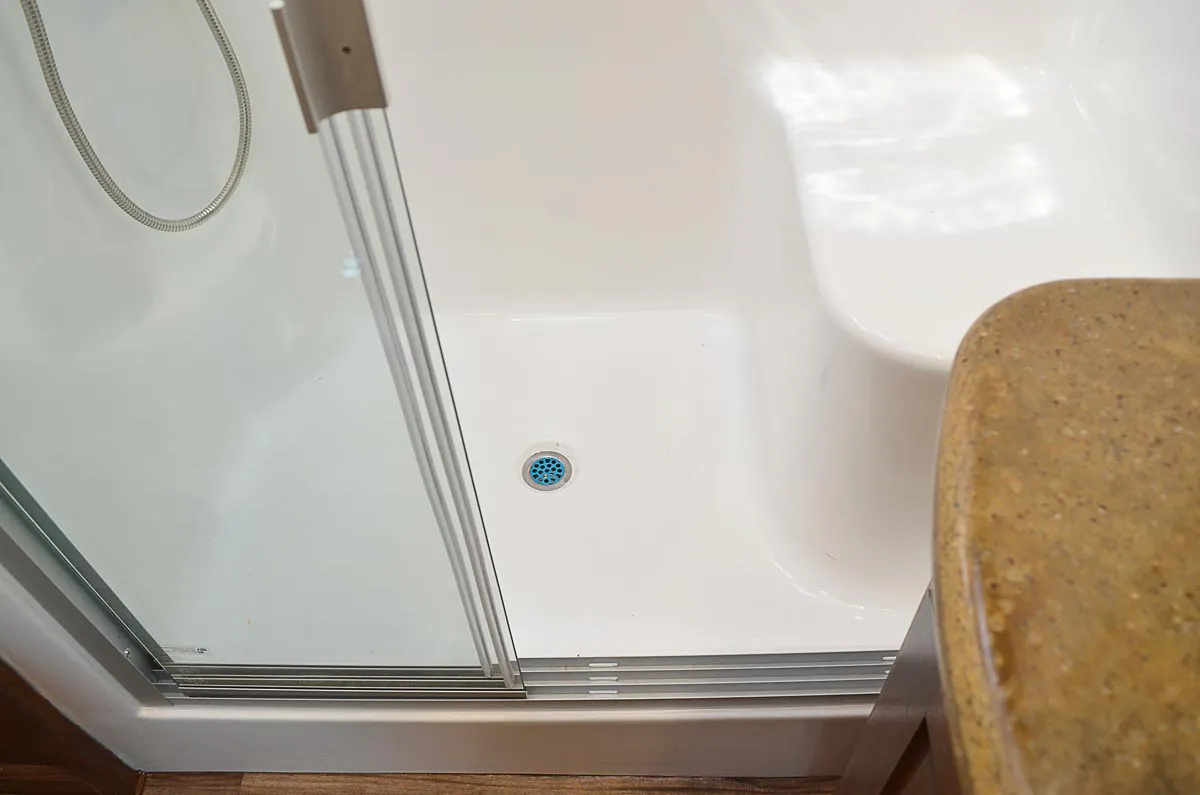

Glass Shower Enclosure
Garden Shower / Bathroom Courtesy Light
Telescoping Lighted Vanity Mirror / Lock Box

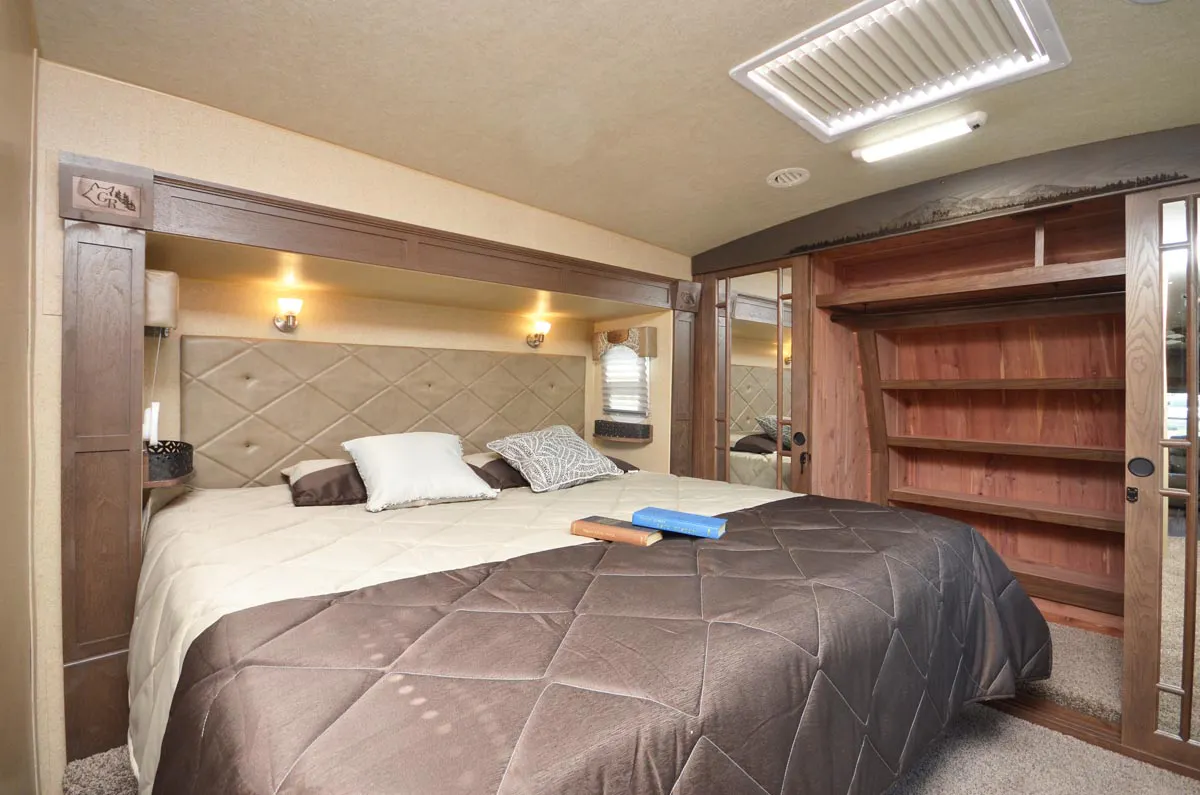

NW TruRest Mattress w/UltraDeck Sleep System

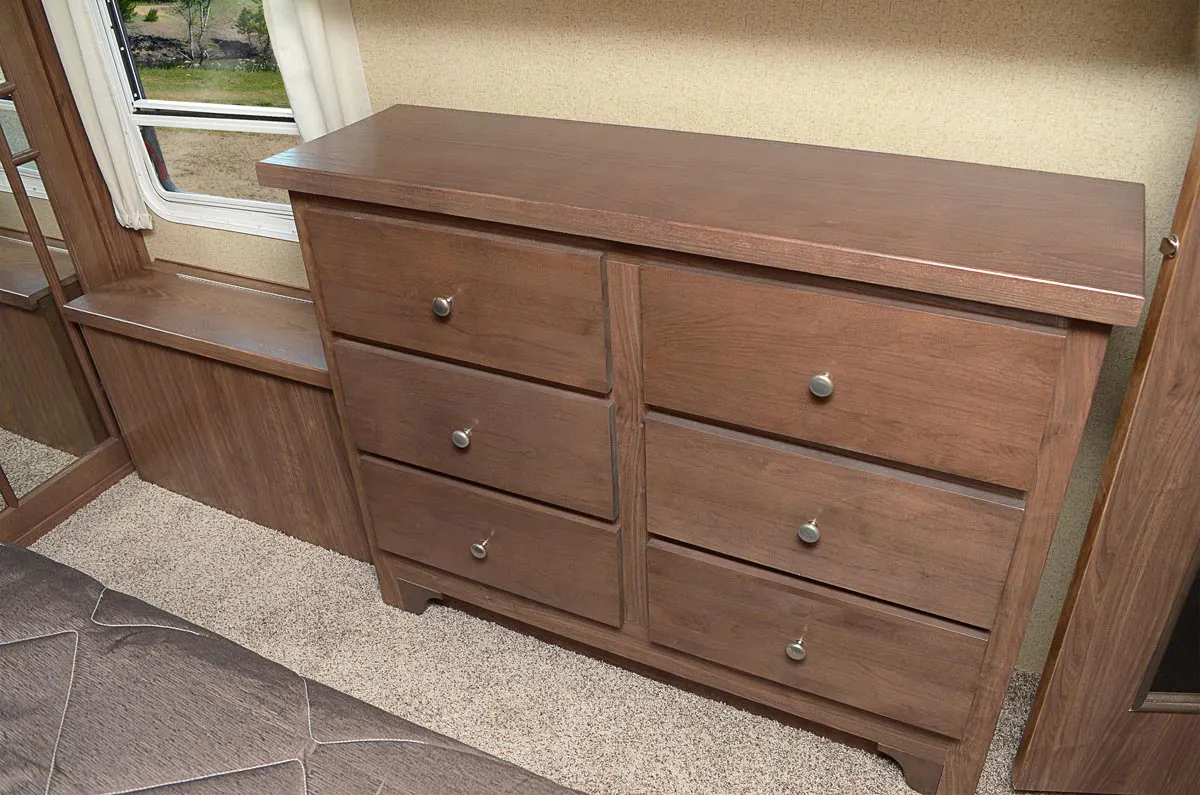

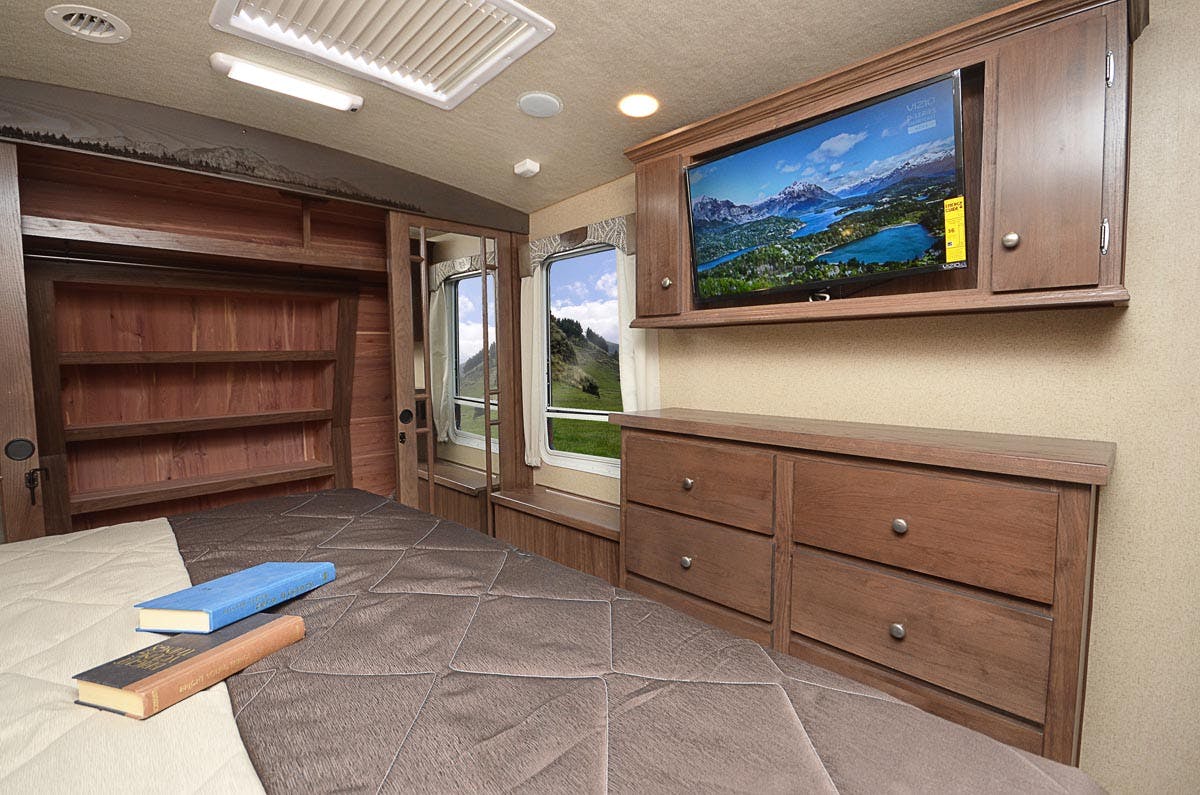

Hardwood Dresser Top / Bedroom Starlite w/ Shade
USB Charging Ports on Both Sides of Bed

Options

16 Gal Quick Recovery Water Heater
29″ Surround-Soundbar
Slide Tray in Pass Thru
Kitchen Slide Topper
Dinette Slide Topper
Bedroom Slide Topper
Alumaguard Main Awning
CSA (Canadian Dealers Only)

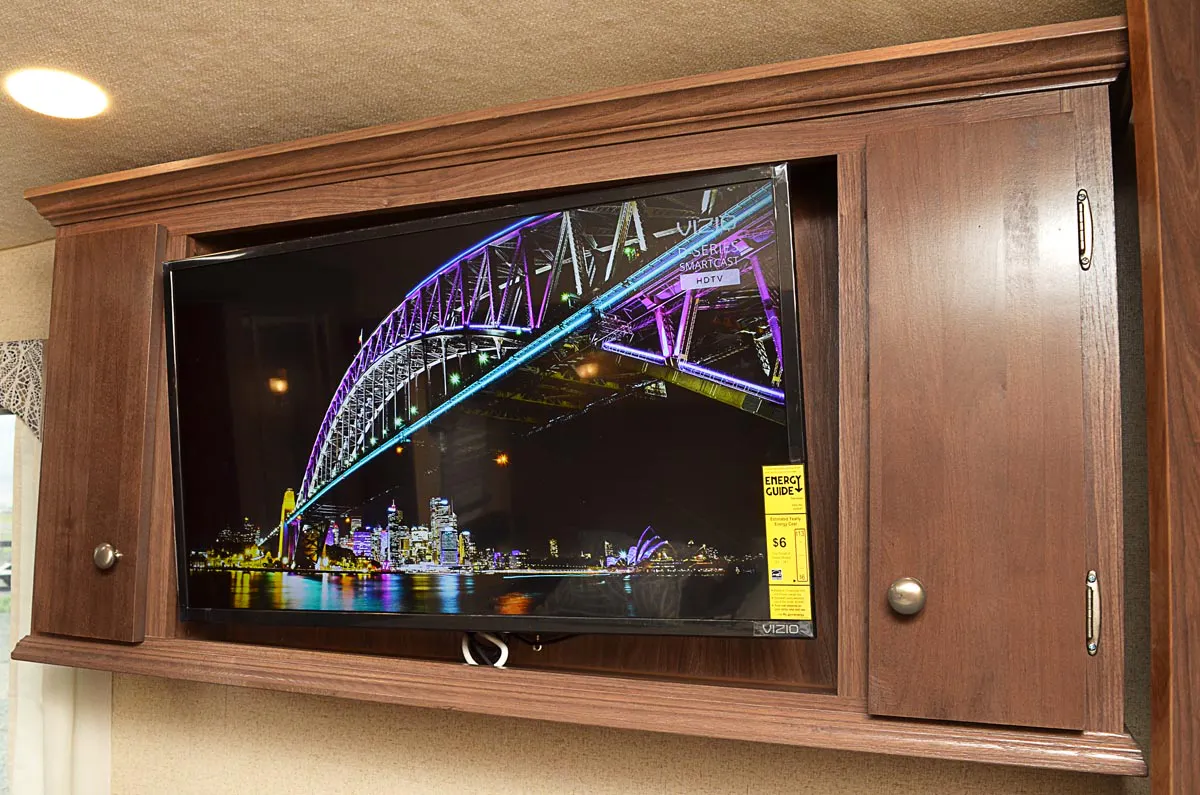

32″ 110V LED Smart TV Bedroom
15K Low Pro Air Conditioner w/Ducting
2nd A/C (Low Pro 13.5K) – Cannot have Fan Vent
Cordless Vacuum
Slow Rise Night Shades
Holding Tank Heat Pads (All Tanks)
Exterior Entertainment Center
Fan Vent w/Remote/Tstat/Rain Sen (Bedroom)
Powered Sliding Stab Jacks,Rear

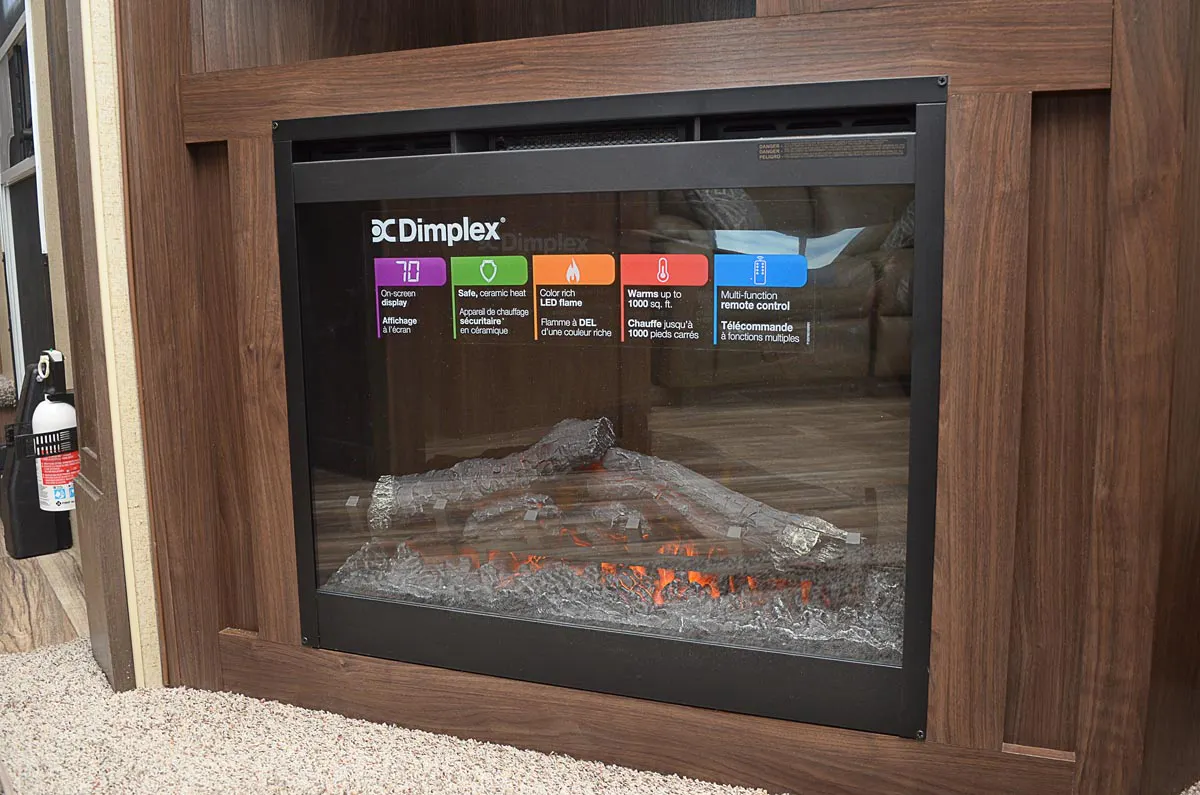

Fireplace
King Bed
5.5 Onan Gold LP Generator
60 Watt Solar Panel
100 Watt Solar Panel
80 Watt Portable Solar Panel Kit
160 Watt Solar Panel
Washer/Dryer Combo
6 Point Leveling System
Winegard Carryout G2+ Sat Dish (DISH/DIRECT)
(HD Sat-Call For Options)
Cross-Stitch Sofa 62″
Aussie Grill w/Stand
Rear View Camera
14 Cu Ft Fridge and Panels
Wi-Fi Extender
