Specifications:

Dry Axle Weight (approx. Lbs.): 6506
Dry Hitch Weight (approx. Lbs.): 548
Net Carrying Capacity: 2946
Gross Dry Weight – Lbs.: 7054
Gross Vehicle Weight (GVWR) – Lbs.: 10000
Exterior Length (approx. w / hitch): 32’4″
Exterior Height (approx.): 11’4″ incl. AC
Exterior Width (approx.): 8′
Tire Size: ST225/75R15
Load Range: E
Fresh Water Capacity (w/water heater, approx. gal.): 50
Gray Water Tank (approx. gallons): 40
Black Water Tank (approx. gallons): 35
LPG Capacity (approx. lbs): 60
Sleeping Capacity: 10
CSA – Canadian Dealers Only: YES
Auto Ignition Furnace (1,000 BTUs): 25

STANDARD FEATURES

Northwood Built, Independently Certified, Off-Road Chassis
One-Piece, Corona Treated, Continuous Fiberglass
Hot, Polyurethane Laminated, Multi-Layered Substrate Walls
Cathedral Arched Ceiling / Aerodynamic Front Contour
E-Z Lube Axles w/Nev-R Adjust Forward, Self Adjusting Brakes
15″ Aluminum Wheels / Tires & White Mod Spare
Shocks On All Four Wheels
12-Volt Power Tongue Jack / Stabilizer Jacks
Easy Access LP Cover / Dynamic “Flight” Graphics
4″ Sewer Hose Carrier Bumper
Dinette-Sofa Slide
All-Conditions/Four Seasons Insulation With R-14 Ceiling
R-15 Reflective Foil Insulation in Roof / Slide
Heated and Enclosed Tanks
Diamond Plate Front Gravel Guard
Premium Woodgrain Pattern Lino
LED Exterior Lighting
Roof Rack & Ladder / Exterior Marine Grade Speakers
Pass Thru Storage w/Independently Switched LED Light
LPG Quick Connect & Black Water Flush System
Large Exterior Entry Grab Handle / Entry Door Friction Hinge
Exterior Shower / Magnetic Catches
Semi-Automatic Winterization/By-Pass System
10 Gal DSI Gas/Elect Quick Recovery Water Heater
13.5m BTU Air Conditioner w/Condensation-Resistant Ducting

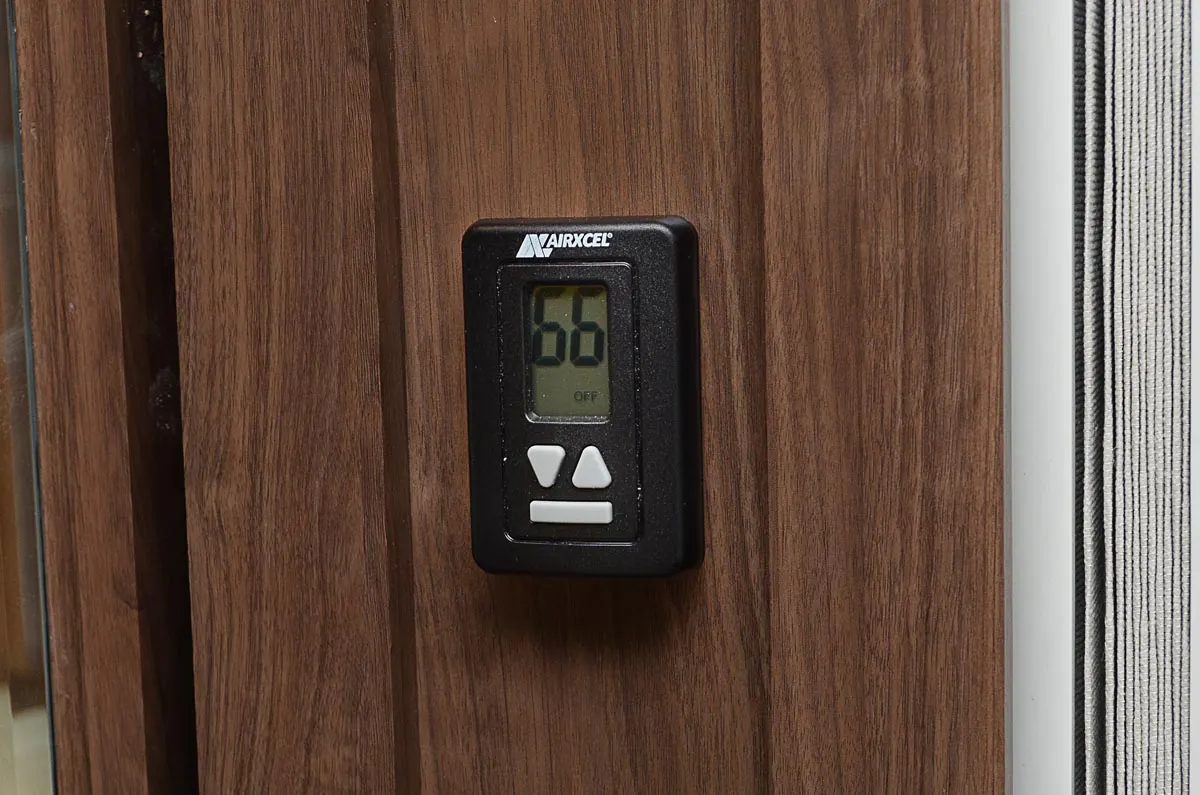

Digital Thermostat / Decorative Window Curtains w/Tiebacks
Efficient Residential-Style Ducted Heating
Carefree Travel’R 12V Awning w/Adjustable Pitch Hardware
TV Antenna with Wi-Fi Extender Ready/Battery Disconnect
20 Watt Solar Panel / Sidewall Solar Port
Generator Ready / Satellite Ready / Solar Ready
Rear Receiver Hitch
LED Interior Utility & Decorative Lighting

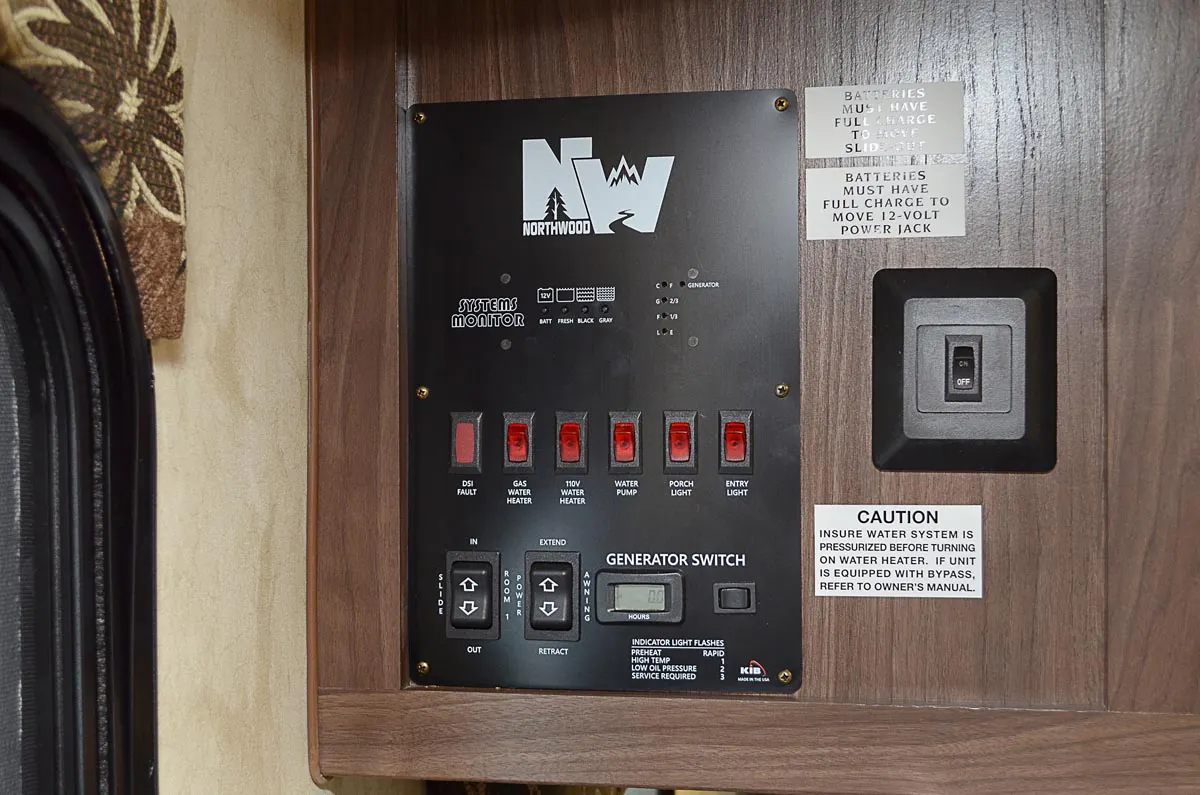

Interior Command Center / Marine Grade Pedestal Table Hardware
Knotty Alder Cabinetry / Roller Bearing Drawer Glides
Fabric Night Shade Window Treatments

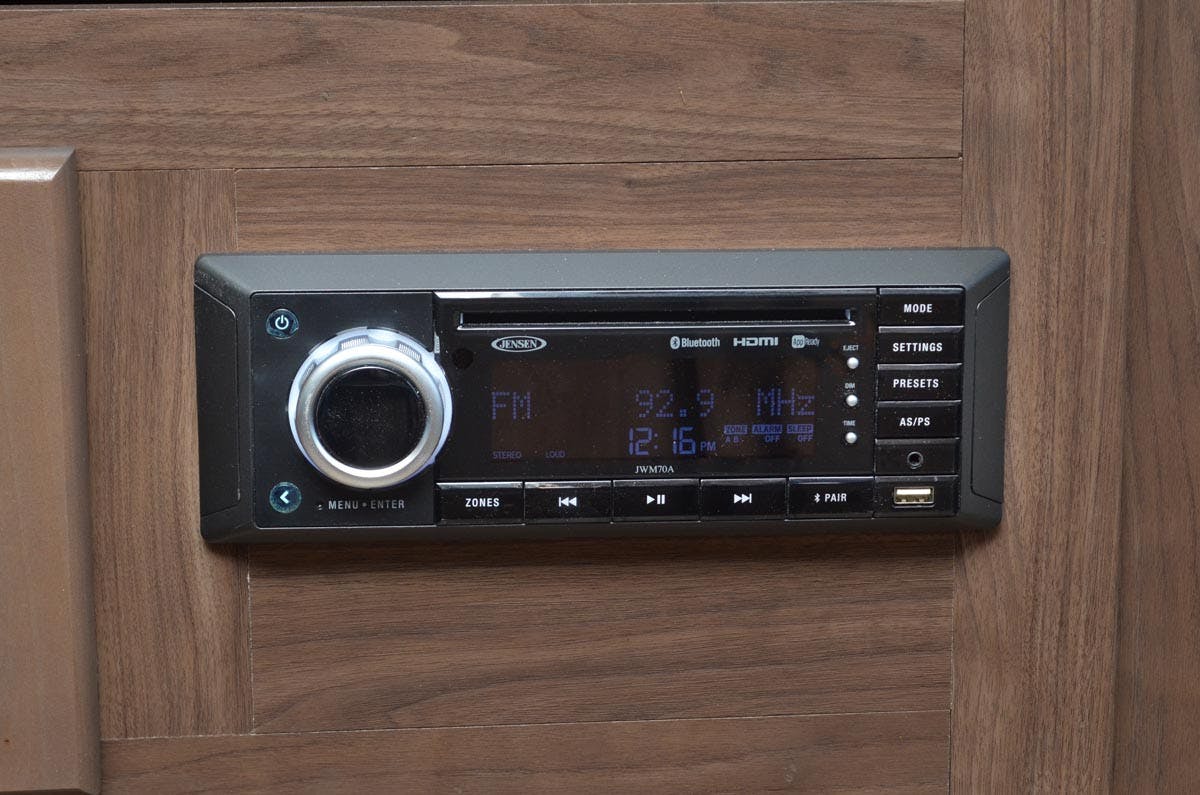

AM/FM/CD/DVD Player w/Bluetooth
Smoke, LPG & CO Leak Detectors

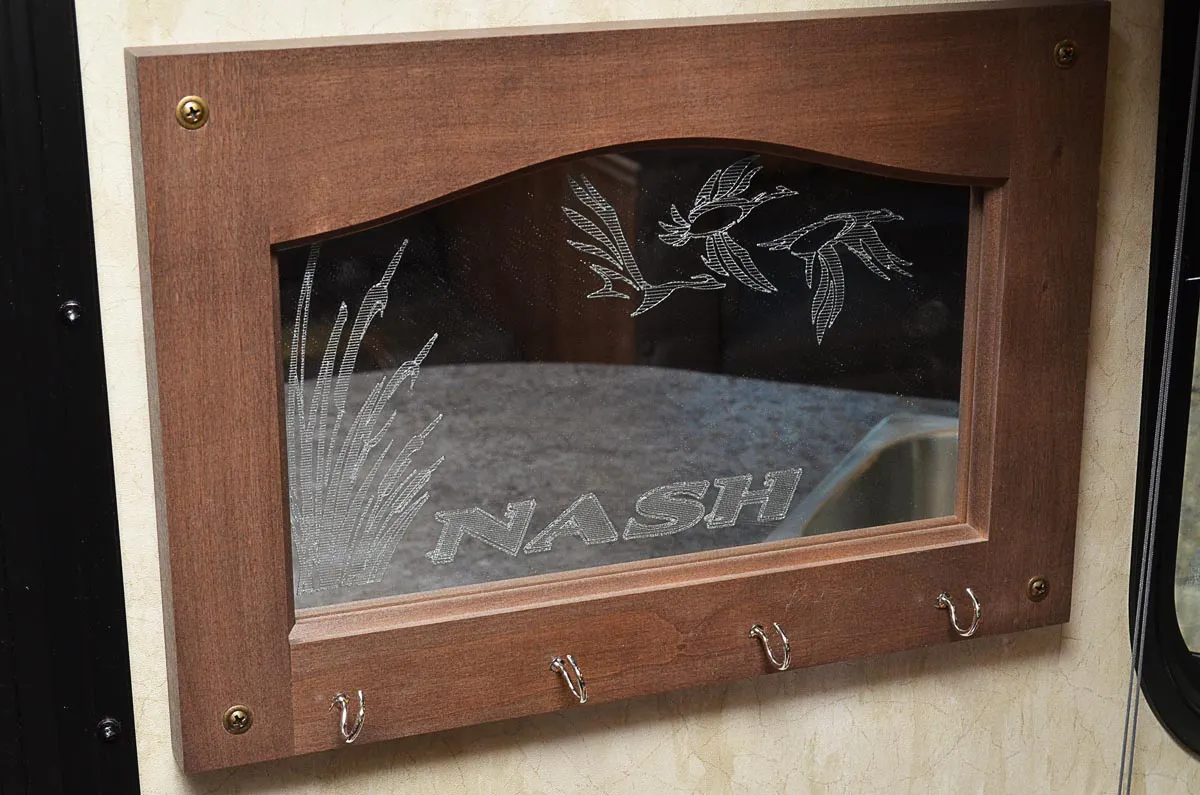

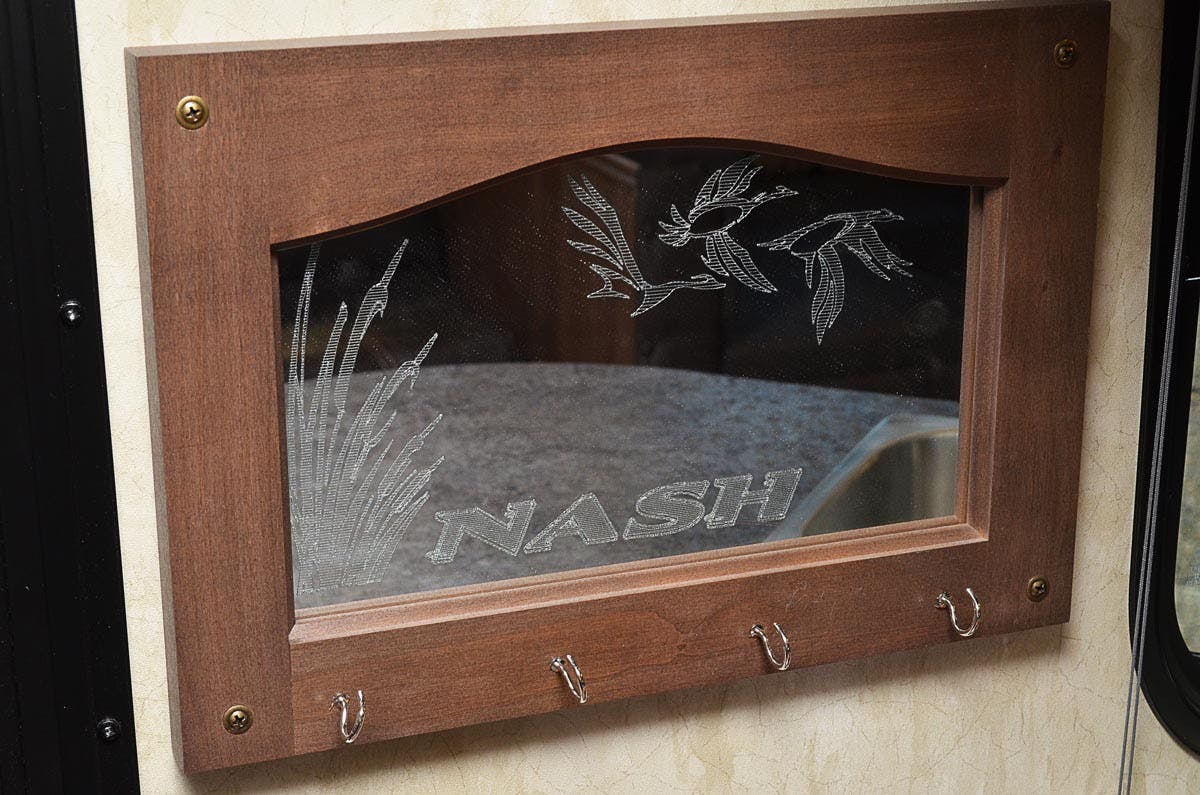

Custom Nash Signature Key Rack

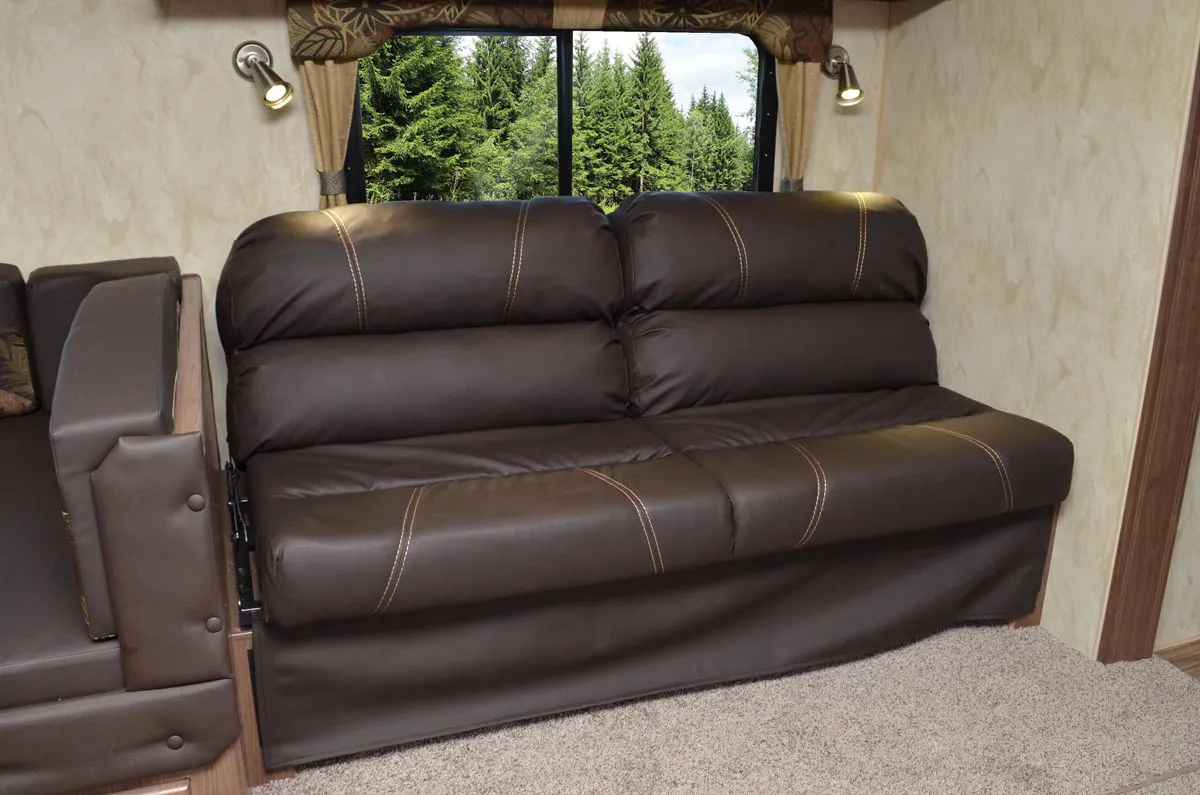

Jackknife Sofa

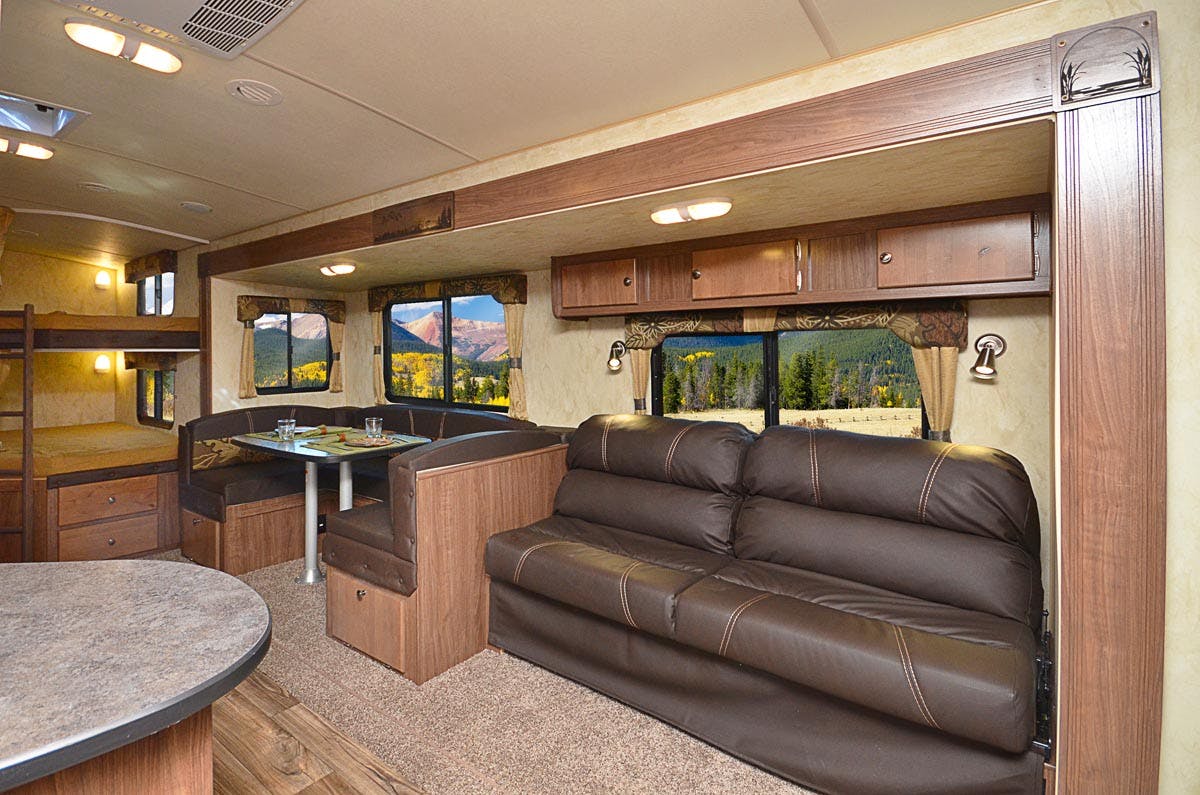

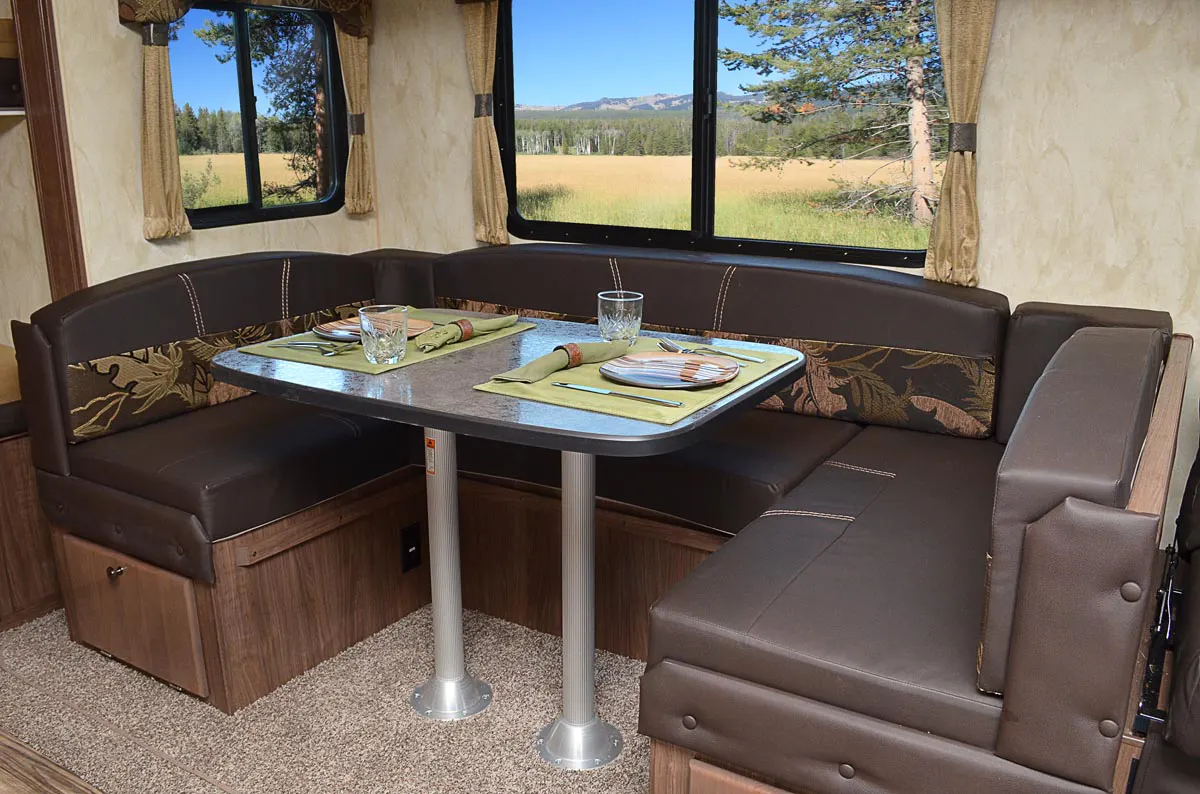

U-shaped Dinette / Etched & Glazed Passage Door

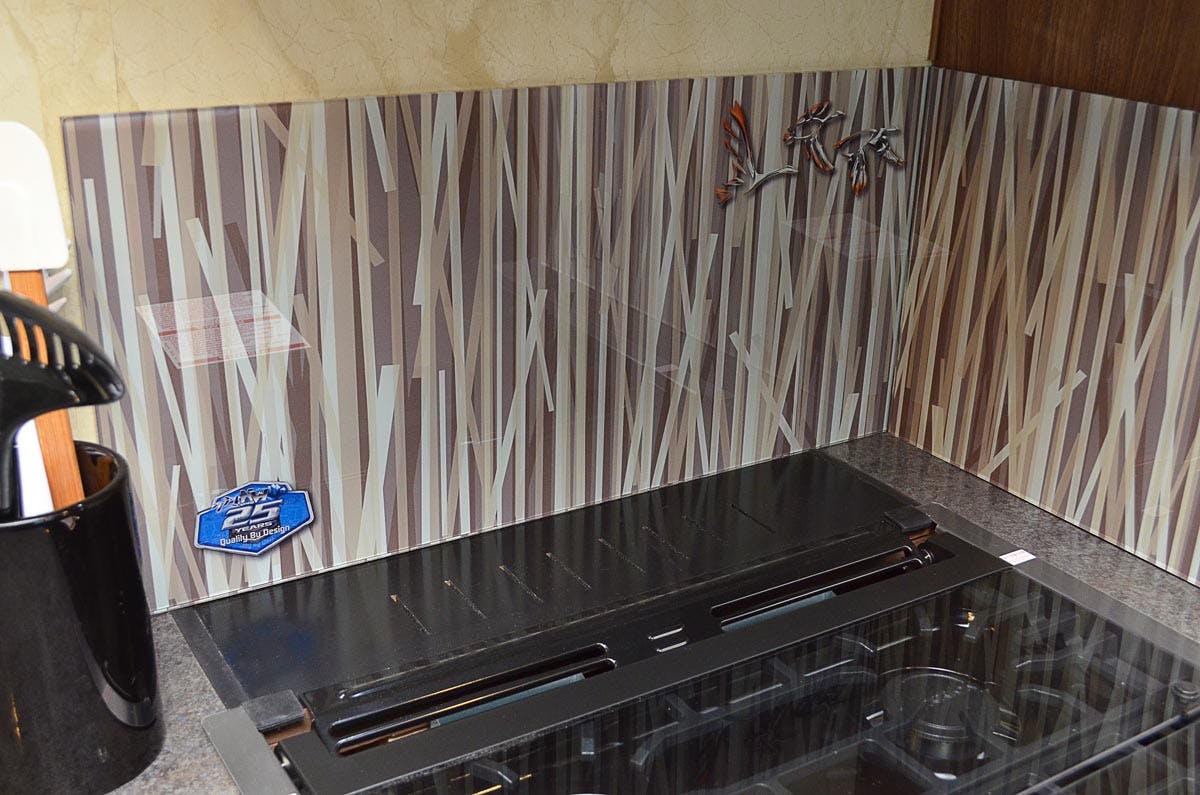

“Slate” Laminate Counters & Custom Glass Backsplashes

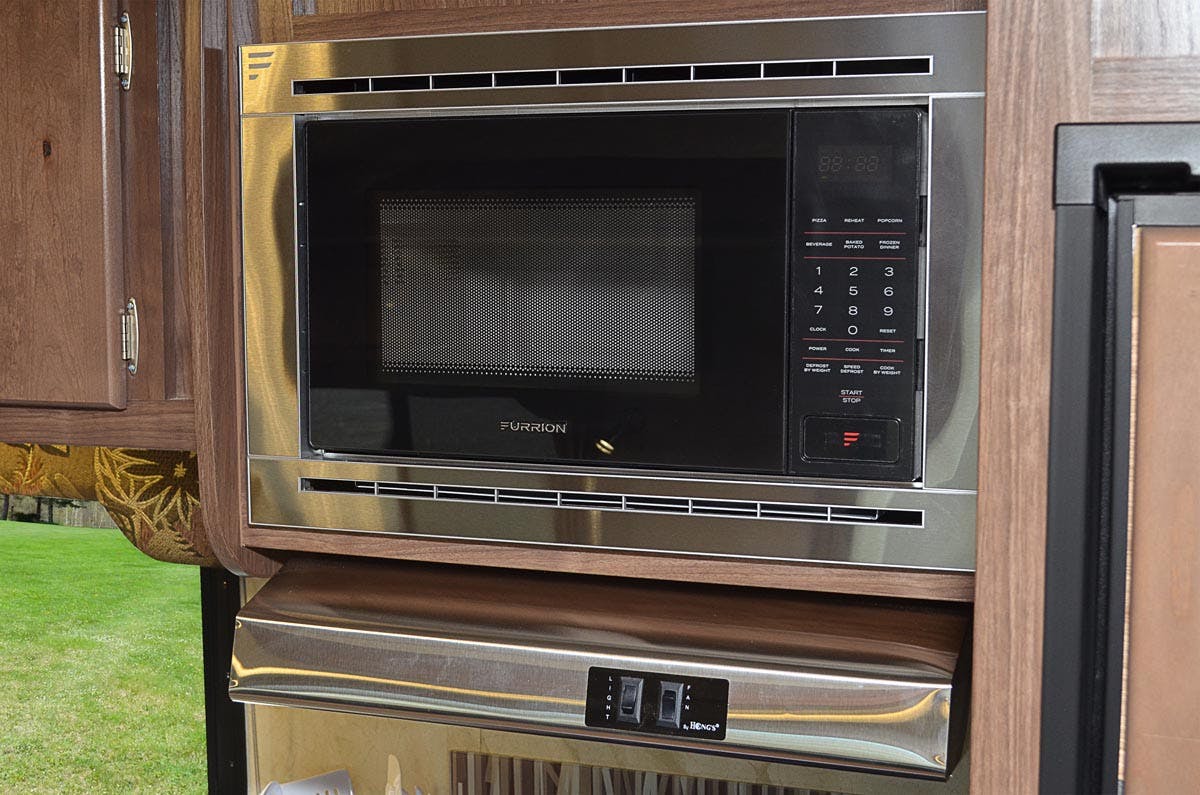

Residential, Built-In Microwave / Stainless Steel Appliances

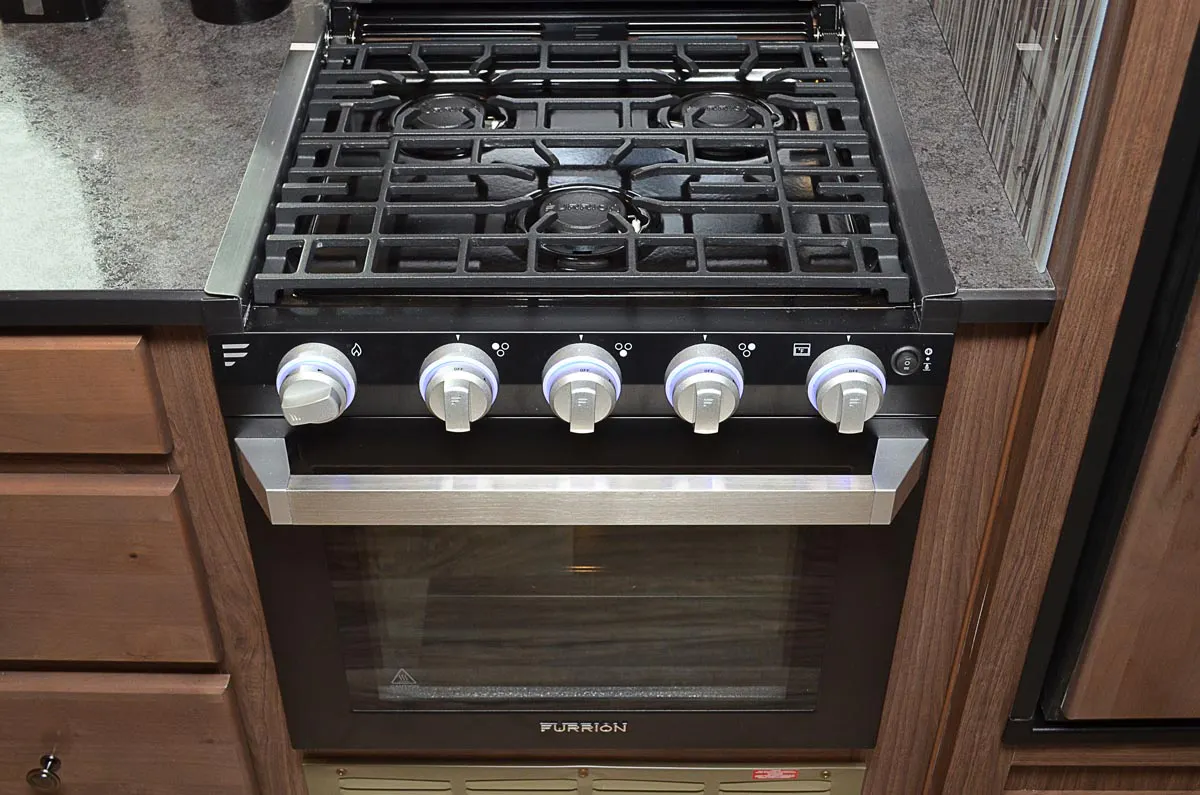

High Output 3-Burner Range with Range Cover
Large Fridge (7 Cu Ft) w/ Insert Panels

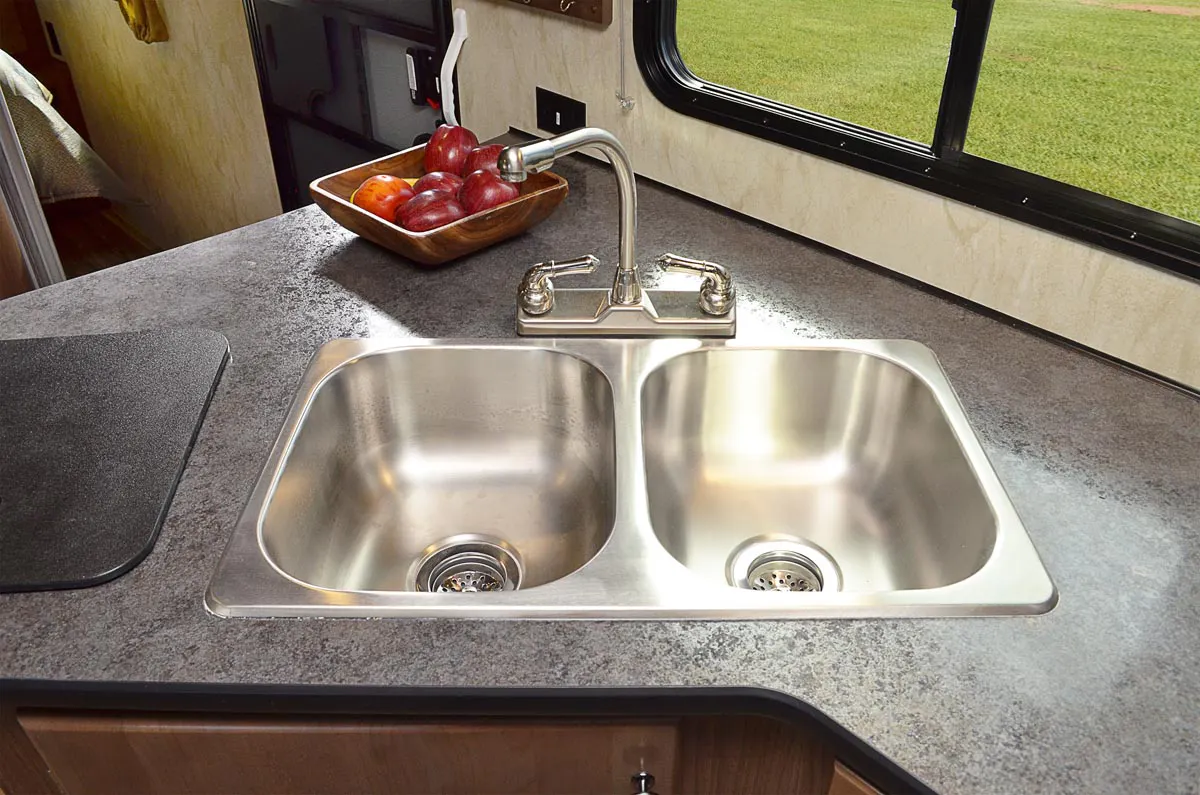

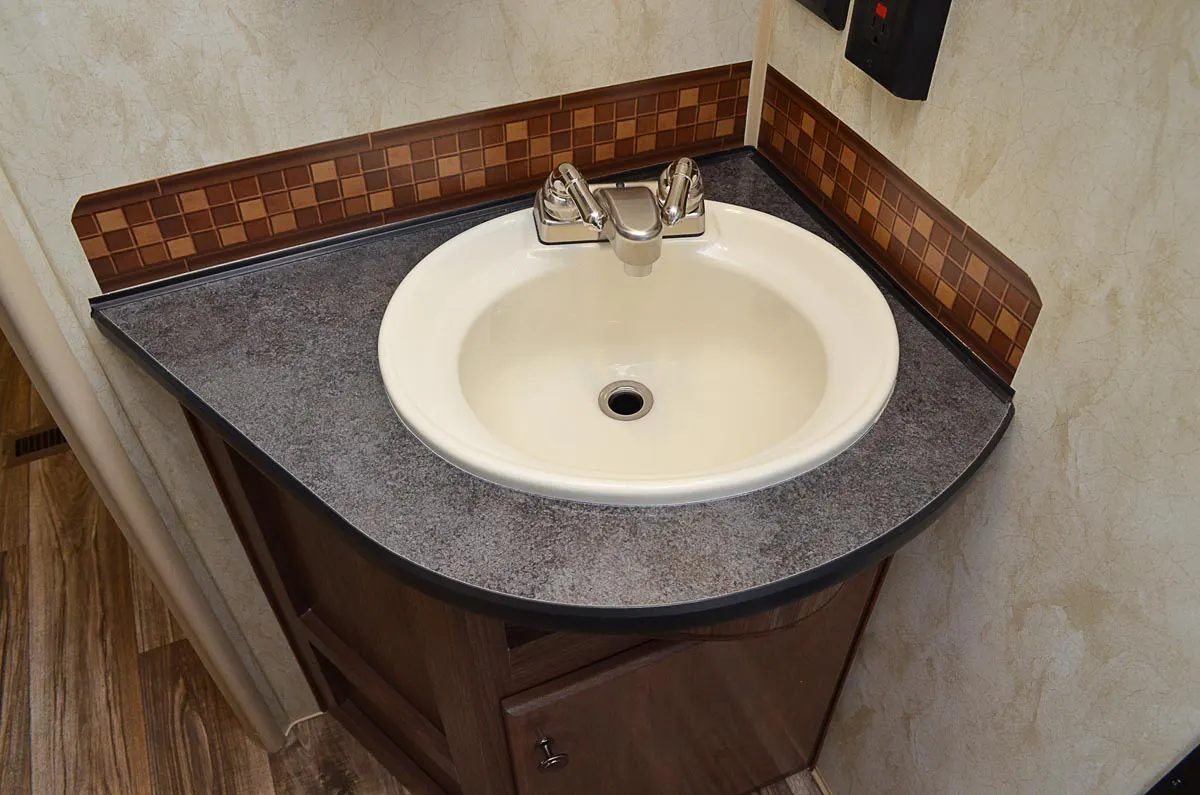

Stainless Steel Sink/Sink Cover/Cutting Board

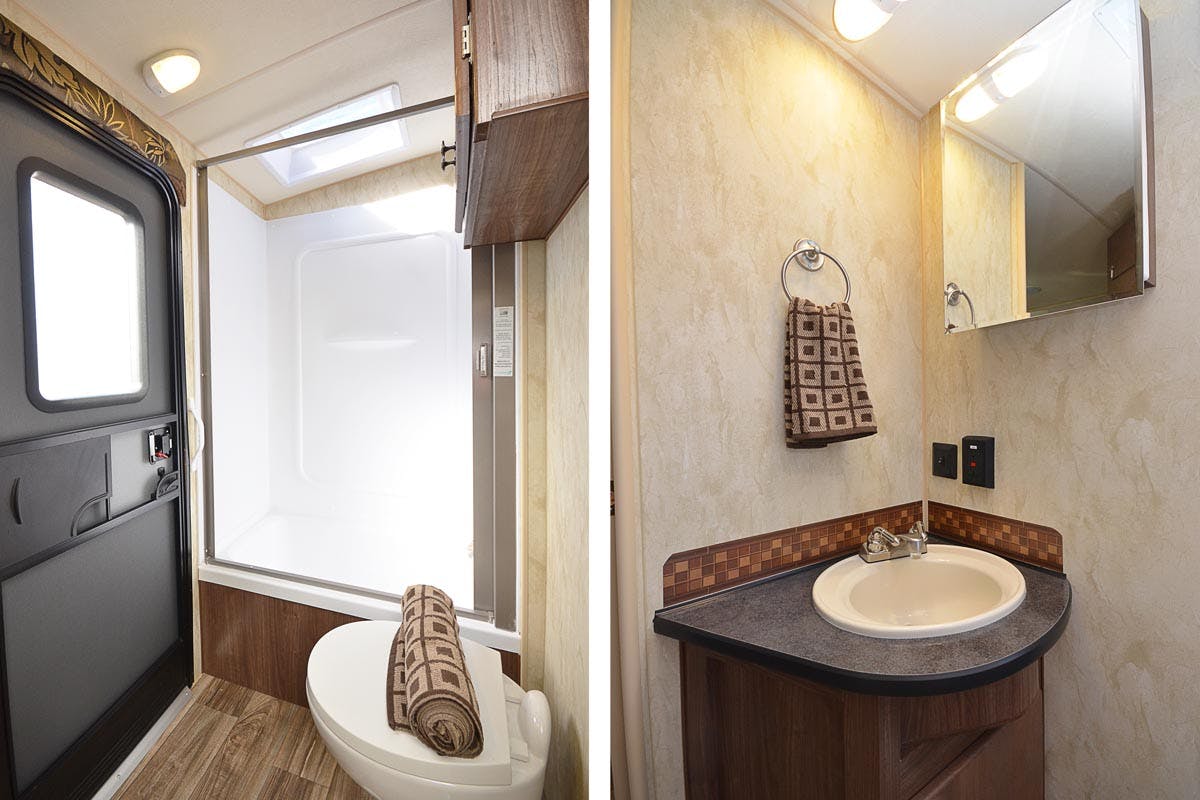

Porcelain, Foot-Pedal Toilet / Bath Skylight

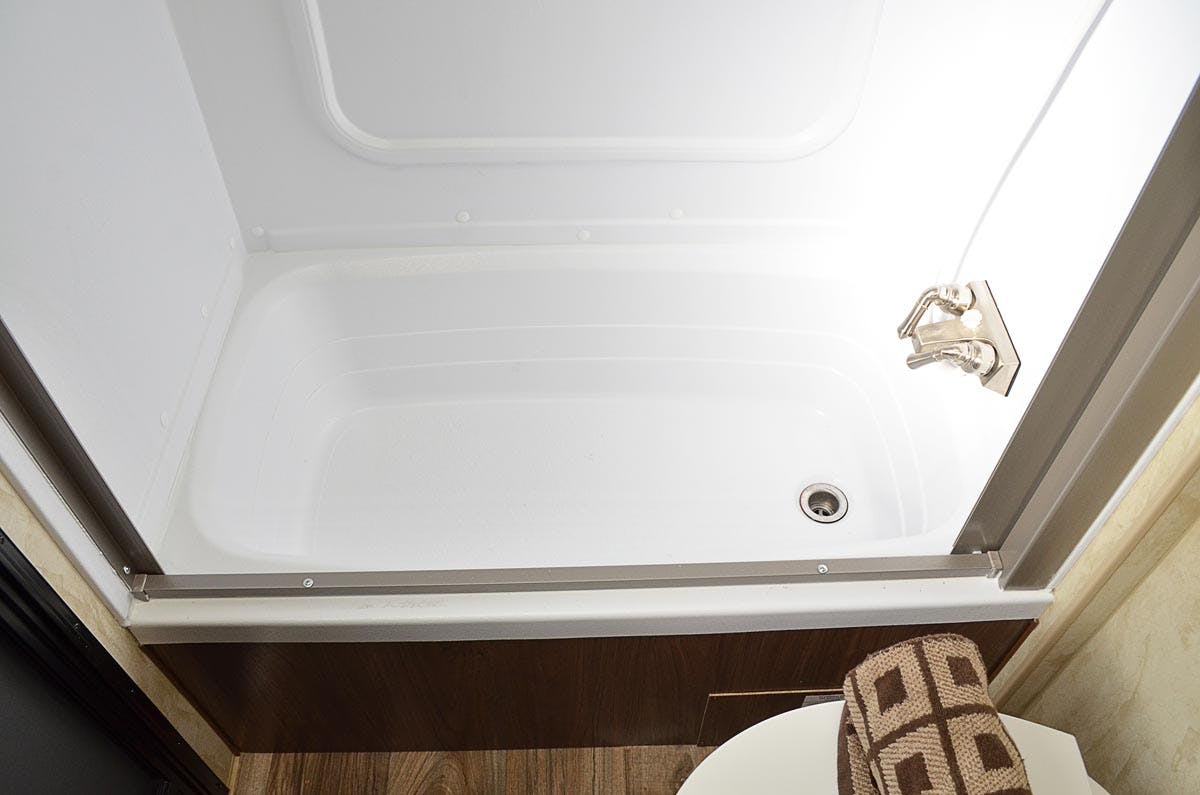

Brushed Nickel Shower Screen / Full Tub

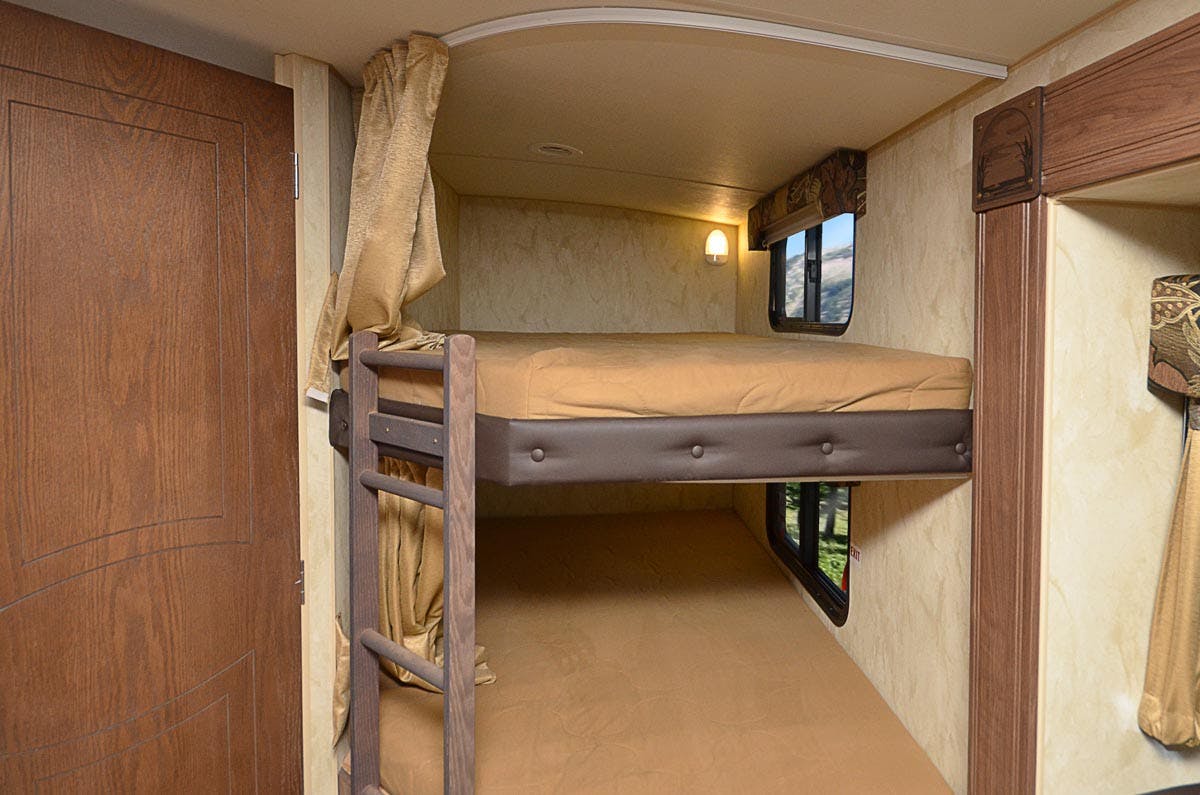

Double Over Double Bunkhouse

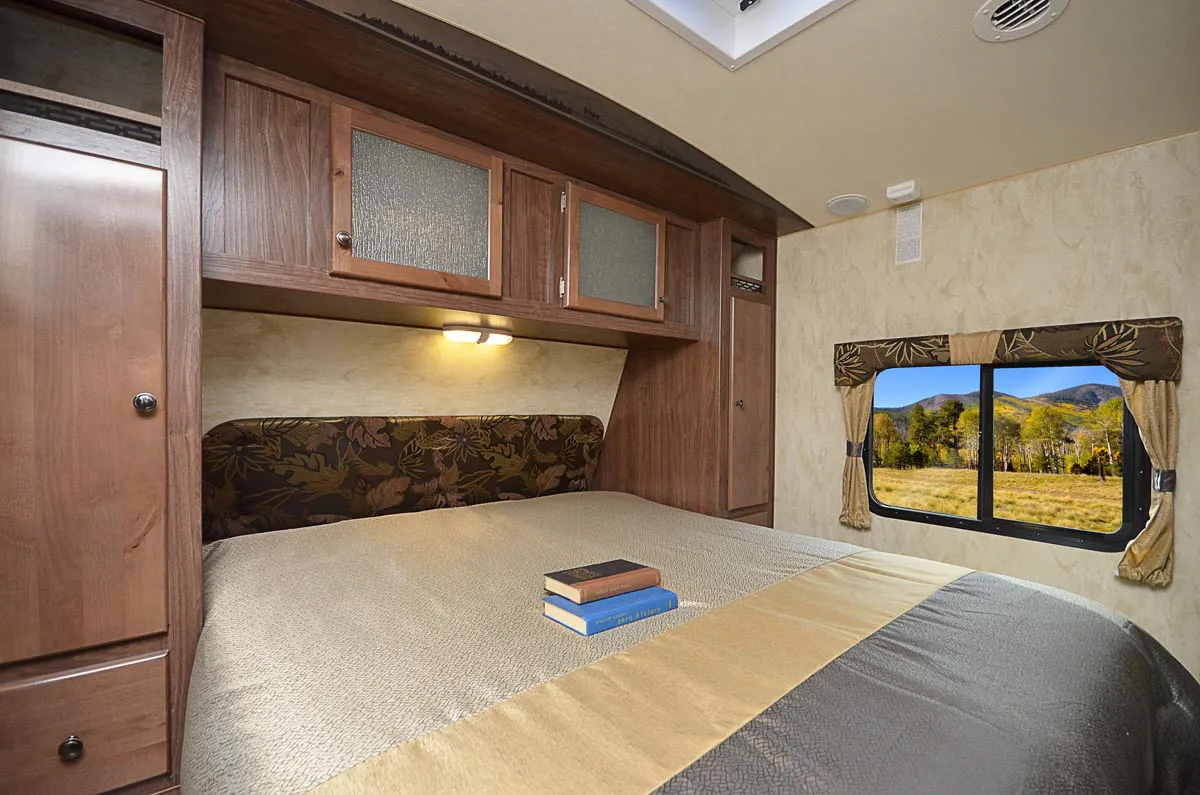

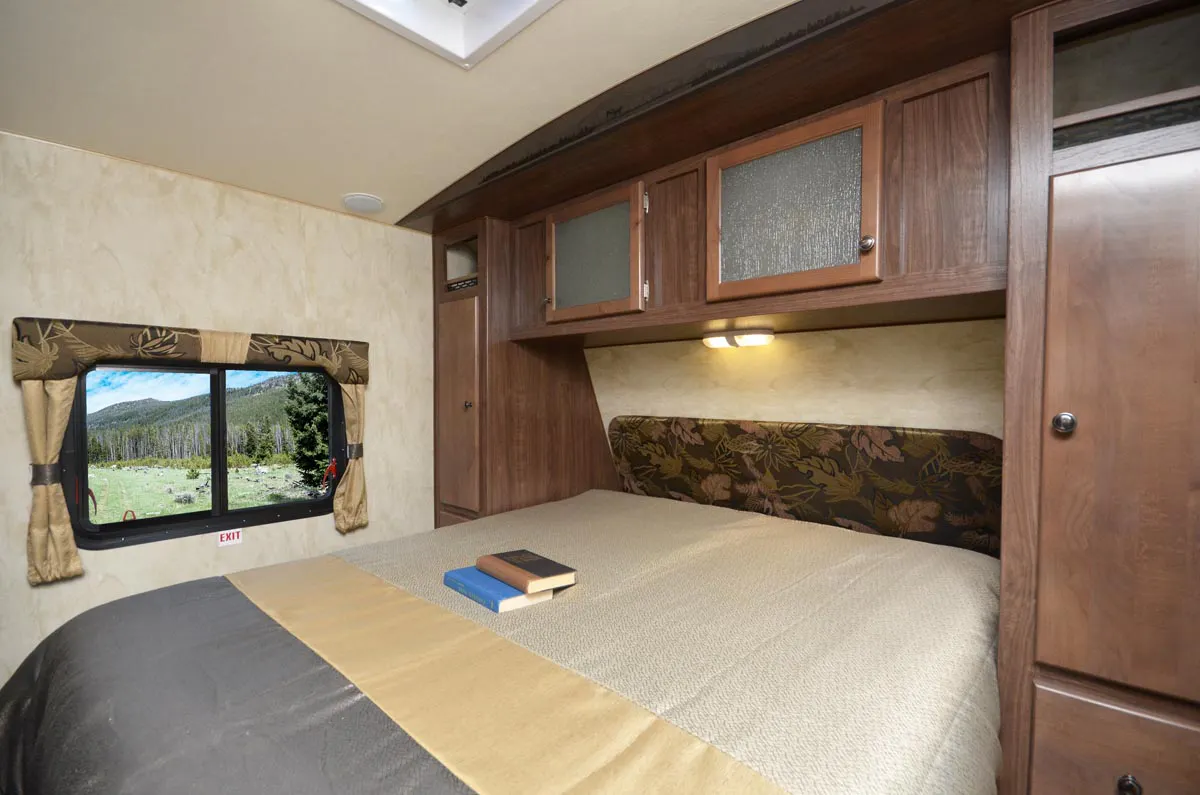

NW TruRest Queen Mattress w/ Bedspread
Camping Clothes Closet with Removable Shelves
Below Bed Storage
USB Charging Ports on Both Sides of Bed

OPTIONS

LED Porchlight-Bluetooth Speaker
Slide Out Topper
CSA (Canadian Dealers Only)

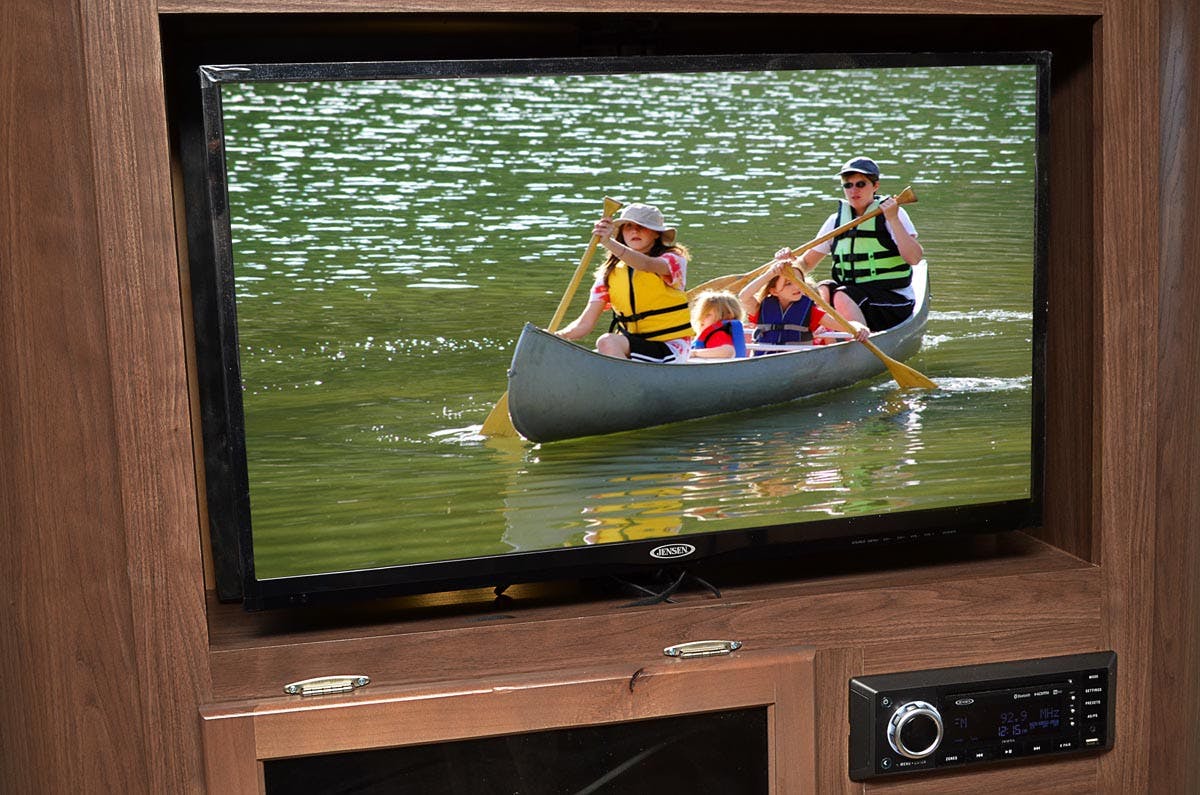

32″ 12v LED TV
15K Air Conditioner w/ Ducting
Fan Vent – Bedroom
Fan Vent – Bathroom (Exhaust Only)
Fan Vent – Kitchen
Thermal Pane Windows
ObeCo Convenience Center
Delete Generator Ready – No Charge
3.6 Onan LP Generator
60 Watt Solar Panel
100 Watt Solar Panel
80 Watt Portable Solar Panel Kit
170 Watt Solar Panel
Cargo Carrier
Aussie Grill w/Bumper Bracket
Wi-Fi Extender
Nash Fiberglass Front Cap
